Max. Laminating Width 340mm Office Use

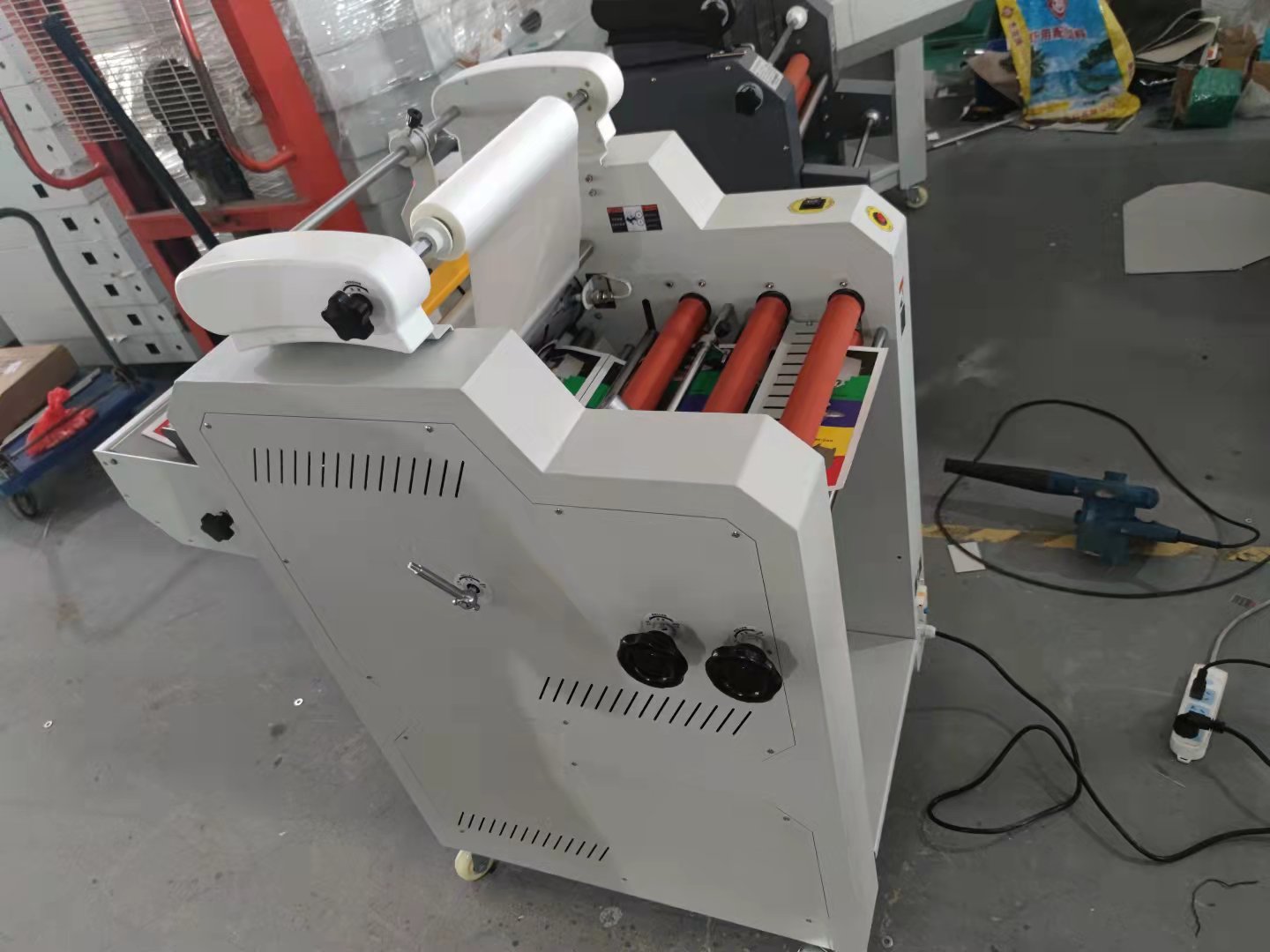

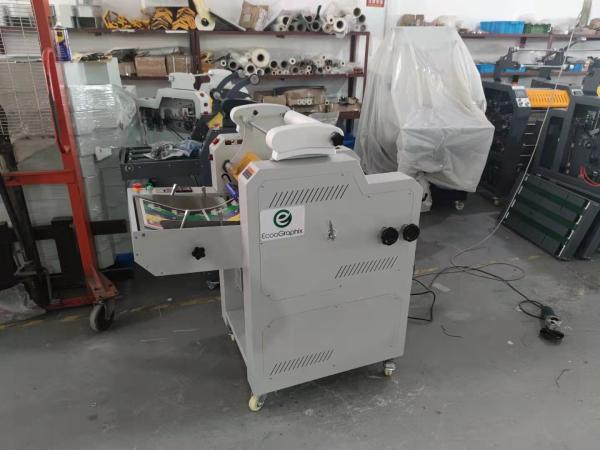

Infrared Heating Laminator
* ♦ · * ♦ · * ♦ · * ♦ · * ♦ · * ♦ · * ♦ ·
· ♦ * · ♦ * · ♦ * · ♦ * · ♦ * · ♦ * · ♦ *
Features
1. Auto laminator, auto feed, auto cutting.
2. Big Mirror steel roller, diameter 110mm.
3. Big pressure: The laminating brighter and more transparent.
4. The intelligent temperature-controlling system.
Highly precise and easy to operate.
Temperature control alarm function.
5. Frequency converter speed control, 180W AC Motor. Speed 0-5m/min.
* ♦ · * ♦ · * ♦ · * ♦ · * ♦ · * ♦ · * ♦ ·
· ♦ * · ♦ * · ♦ * · ♦ * · ♦ * · ♦ * · ♦ *
Specifications
Laminating Machine
Model
SRL-35A
Max. Laminating Width
340mm
Maximum Thickness
2mm
Laminating Speed
0-5m/min
Roller Diameter
110mm
Max. Heating Temperature
160ºC
Heating Mode
Infrared heating
Heating Power
1500W
Power Supply
AC220V/110V, 50HZ/60HZ
Motor Power
180W
Machine Dimension
1150*780*1420mm
Weight
Net: 220kgs, Gross: 260kgs
| Laminating Machine |
| Model | SRL-35A |
| Max. Laminating Width | 340mm |
| Maximum Thickness | 2mm |
| Laminating Speed | 0-5m/min |
| Roller Diameter | 110mm |
| Max. Heating Temperature | 160ºC |
| Heating Mode | Infrared heating |
| Heating Power | 1500W |
| Power Supply | AC220V/110V, 50HZ/60HZ |
| Motor Power | 180W |
| Machine Dimension | 1150*780*1420mm |
| Weight | Net: 220kgs, Gross: 260kgs |
* ♦ · * ♦ · * ♦ · * ♦ · * ♦ · * ♦ · * ♦ ·
· ♦ * · ♦ * · ♦ * · ♦ * · ♦ * · ♦ * · ♦ *
