High-Speed Inkjet Digital Press
Model
ECOO GM-1400
Cutting Type
The up knife cut reciprocally and the down knife is fixed
Applicable Range Of Paper
60-550g
Max. Paper Roll Diameter
1800mm
Max. Paper-cutting Width
1400mm
Range Of Cutting Length
450-1600mm
The Format Of Slitting
2 sheet
Cutting Precision
Cutting length ≤ 1000mm: ± 0.5mm, Cutting length > 1000mm: ±
0.1%
Max. Cutting Speed
350 cut/min
Max. Cutting Meter Speed
350 m/min
Max. Paper Stacking Height
1500mm
Air Pressure Source Requirement
0.8Mpa
Design Power
380V/220V 50HZ
Gross Weight
13000KGS
Cutting Precision:
Depending on the density, roll number and material of paper roll,
±0.5mm for 1000mm, ±0.1% for over 1000mm, and ±0.1% for
acceleration or deceleration. The above data is based on the stable
cutting operation and correct operation procedure.(When the cutting
paper roll is one, the length of the cutting paper is the correct
length)
Output:
Actual output depends on the paper material, paper weight, cutting
length, number of paper roll, technology of the operator and
operation conditions, etc.
| High-Speed Inkjet Digital Press |
| Model | ECOO GM-1400 |
| Cutting Type | The up knife cut reciprocally and the down knife is fixed |
| Applicable | Range of paper 60-550g |
| Max. Paper Roll Diameter | 1800mm |
| Max. Paper-cutting Width | 1400mm |
| Range Of Cutting Length | 450-1600mm |
| The Format Of Slitting | 2 sheet |
| Cutting Precision | Cutting length ≤ 1000mm: ± 0.5mm,
Cutting length > 1000mm: ± 0.1% |
| Max. Cutting Speed | 350 cut/min |
| Max. Cutting Meter Speed | 350 m/min |
| Max. Paper Stacking Height | 1500mm |
| Air Pressure Source Requirement | 0.8Mpa |
| Design Power | 380V/220V 50HZ |
| Gross Weight | 13000KGS |
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
★☆★ Standard Configuration ★☆★
1. High-precision single knife cutting machine
2. Auto Prismatic adjustment system for paper
3. Middle slitting and waste collection paper system
4. Automatic counting and label inserting equipment

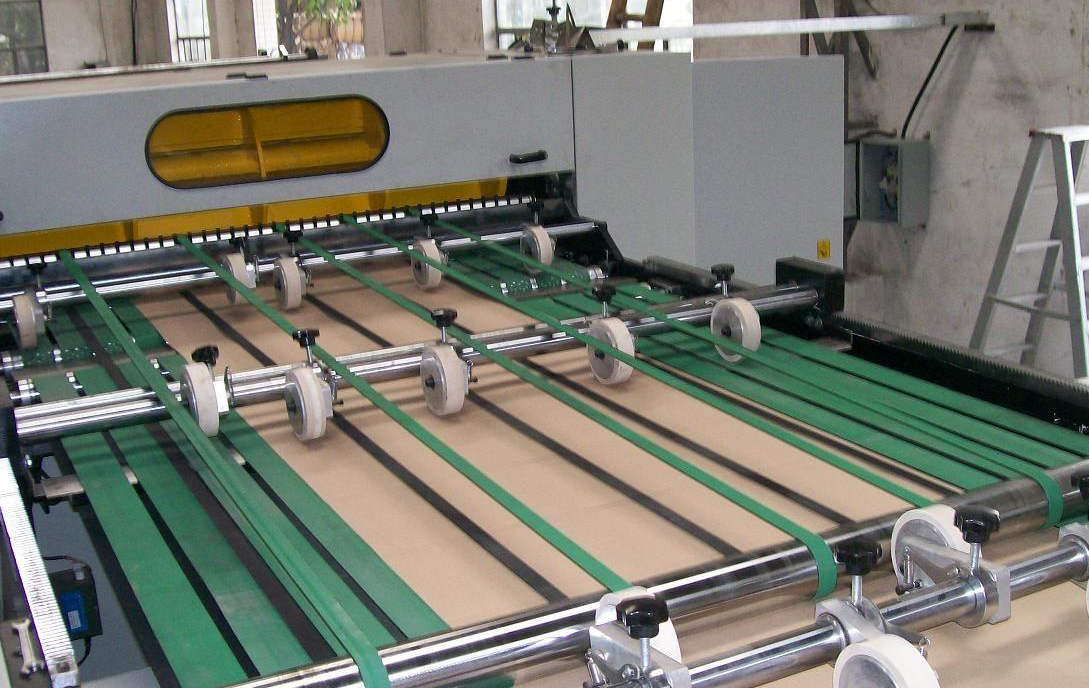

5. Paper transporting equipment
6. Automatic paper trimming and collecting machine
7. Electrical controlling system
8. Driving motor system
9. Accessory by machine
10. Double arm oil pressure shaftless mill roll stand
11. Equipment of electrostatic elimination
12. Automatic directing and paper tension controller
13. Equipment of automatic vacuum
14. Operation system: LCD panel by operator
15. Main drive system: AC servo motor
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
★☆★ Producing And Packaging ★☆★
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
★☆★ Certificates ★☆★
////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
★☆★ FAQ ★☆★
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
|
Q2: Where is your factory ?
A: Our CTP processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
|
Q3: What is your warranty for the CTPs ?
A: Three years' laser head and main spare parts for the CTPs, one year
for the processor.
If the customer use EcooGraphix CTP plate with the CTP machine, we
will provide the Lifetime Warranty.
|
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
|
Q5: What about the installation and after-sales technician support
?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets, service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are
also many end users(printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits. These end users printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hassle on installations, training and after sales service. We
guarantee your satisfaction. |
