Semi-automatic Paper Die Cutting Stripping Machine
EcooGraphix QF680T is the ideal equipment for die cutting and
creasing all kinds of paperboard, it is the most preeminent handfed
die cutting machine to do some simple creasing for sample.
As the longest life product , our semi automatic die cutter has
been upgraded for many times, but we keep the perfect surface and
make the performance to the best.
This series of products suitable for the strip process after die
cutting, Save lots of labor improve the quality of products,
increase the efficiency of company
Features
1. It adopts servo motor, Taiwan double guide rail and bail screw
which makes accuracy less than 0.02mm.The latest hydraulic system
is equipped with inserted motor and oil temperature cooling fan
(power 3.75kw).
2. The complete machine is equipped with PLC, and with a touch screen
interface in operation.
3. Applied for many die cut products such as labels, hang tags,
business cards, gift boxes, food boxes,
paper cups and other die cutting products in paper or plastic, PU
leather.
4. Automatically taking out with manipulator arm to stack product
onto delivery belt.
5. Automatic lubrication system for machine better maintenance.
6. Different shapes can be custom-made as customer requirement.
Specification
| Automatic Stripping Machine |
| Model | QF 680 | QF 920 | QF 1080 |
| Max sheet size(x)x(y)mm | 680x460 | 920x680 | 1080x780 |
| Max paper pile height(mm) | 100 | 100 | 100 |
| Min paper pile height(mm) | 40 | 40 | 40 |
| Min sheet size(x)x(y)mm | 400x300 | 550x400 | 650x450 |
| Bench height(mm) | 850 | 850 | 850 |
| Max Take off the paper(mm) | 230x230 | 320x320 | 360x360 |
| Min Take off the paper(mm) | 30x30 | 30x30 | 30x30 |
| Fasterst Take off the paper(pcs/min) | 15-22 | 15-22 | 15-22 |
| Max force(bar) | 70 | 70 | 70 |
| Air consumption(L/min) | 2 | 2 | 2 |
| Power | 4.2kw/n 380V | 4.2kw/n 380V | 4.2kw/n 380V |
| Net weight | 1.5T | 1.9T | 2.3T |
| Package dimension(mm) | 2100x1500x2200 | 2600x1950x2250 | 3000x2150x2200 |
| Gross weight | 1.8T | 2.2T | 2.6T |

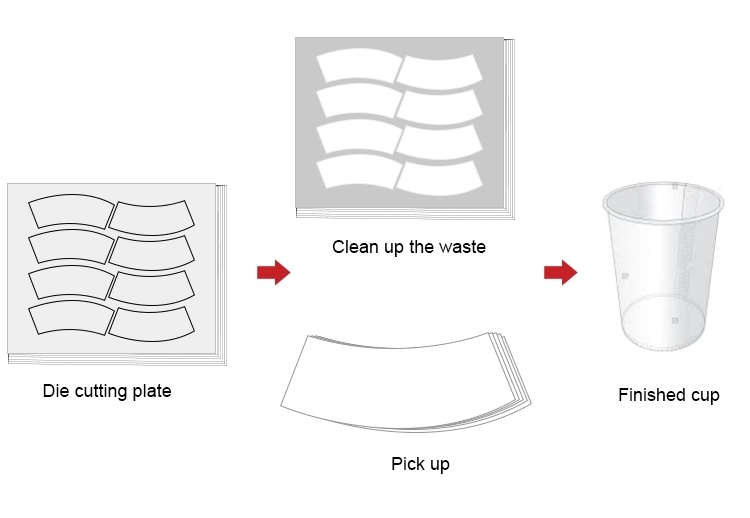

Application and Samples:
4.About our factory
EcooGraphix TD790 is produced by the leading manufacture in China
,which has a long history more than 90years. It is the first
factory to produce and supply the Die Cutting ,Foil Stamping and
Automatic Gluing machines .There are thousands of Die Cutting
Machines installed worldwide. And two units EcooGraphix TDS790 were
installed in Hungary in 2017.
Quality Control
Professional control department which is responsible for all the
machines.
Full checking list including mechanical and electrical detection on
the machine.
Strict standard for registration and over 24 hours non-stop running
on each machine.
Follow the policy of ‘One person responsible for one machine’,‘Claim responsibility if machine has assemble problem.
Service
All technicians have over 10-20 years experience.
Rich experience in installation, repairing and maintenance
overseas.
After-sales staff Whatsapp/Wechat on line 24/7.
Guarantee to provide after-sales service for any machine for whole
using life.
