TC1100 Double Lanes Milk KFC Carton Window Patching Film Gluing Machine

1. Application
Ecoo TC-1100,TC-1000 automatic window patching machines are special equipment for carton box, color box window lamination for both cardboard and corrugated paper;

The machines are widely used in the film patching to be package with or without the window of the wine box, gift box, tissue paper box, cosmetic box etc. It can also realize the function of the paper gluing, film patching, film cutting and paper collection before folding boxes.

TC1000 is single lane, TC1100 is double lane.

2. Main features:


Option of pre-make ready table is available. Operator can set up the mould outside of the machine .


Equipped with servo feeder, with the choice of option which is piling lifting system and belt lifting system. Adopting advanced world famous brand components in pneumatic parts , electric parts and operation parts.

Apply a linker to connect with the air conveyor , which can directly connect with filling machine .

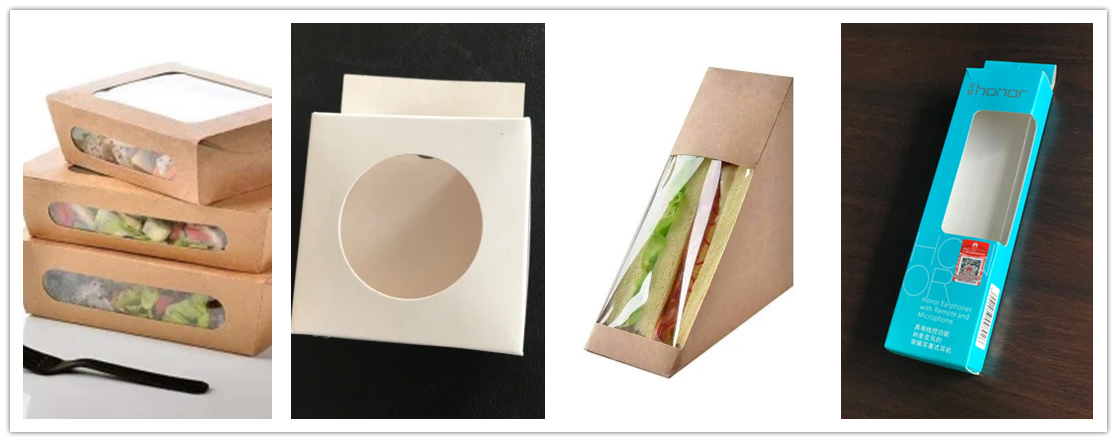

3.Application and Sample:



4. Technical Specifications:

1) Sizing Part(gluing):
The Gluing Section consists of the chrome-plated glue roller, glue separation plate, side guide and glue mould roller.
In case of the machine shutdown, the cylinder will lift the glue roller and then the machine will be driven by the other separate motor ,to avoid the leaking of the glue.
Option of pre-make ready table is available, Operator can set up the mould outside of the machine. It's convenient and time saving.


2) Paper collecting part (delivery stacker)
The belt at the Delivery Section is wide. Operator can adjust the height of the belt and the finished products are aligned in a straight line.
Belt speed can also be adjusted to be synchronized with the machine speed.


3) Feeder part (paper feeding)
The machine is equipped with servo feeder, with the choice of option which is pilling lifting system and belt lifting system.
There is a feeding gate at the feeder which allows you to adjust upper rail without additional tool. This upper rail is made of flat steel and is connected to the middle part of the frame.
This system is reliable which ensure the registration of all, cardboard and chain is accurate.
Even when there is serious jam, the position is precise and you can use micro-adjustment to adjust.



4) Window patching part
Boxes are delivered from the gluing section to the window patching section by suction.
The suction cylinder is made of special material. It is smooth so that the speed of patching is high and there will be no scratch on the plastic film.
When the knife cylinder is rolling, it intercrosses with another fixed knife bar and hence cutting the plastic film like "scissors". The cutting edge is flat and smooth.
The knife cylinder is with adjustable blowing or suction system to ensure the plastic film is patched on the window of the box accurately.
