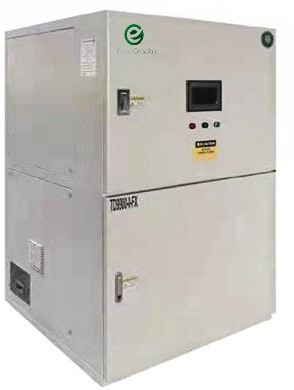

Waste Liquor Curing Treatment Developer Processing Machine
❶ Brief Introductions

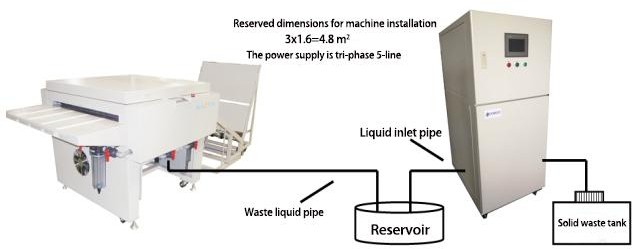

1] Automatic collection and centralized treatment of developing
waste liquid.
2] All control systems are controlled by PLC and operated by touch
screen. Fully automatic online operation, automatic collection and treatment of developing waste liquid.
3] Electric heating is adopted for concentration treatment.
4] The concentrated solidified products are discharged and
solidified by automatic scraper.
5] After treatment, the solid waste can be automatically discharged
into the fixed tank for easy cleaning.
6] No additional chemicals need to be added during the treatment.
7] The treatment residue is solid, and the remaining solidified
product is about 10% of the original waste liquid.
8] The treatment rate is related to the composition of the
developer, and the matching developer circulation filtration system can improve the treatment rate.
❷ Specifications
Intelligent Waste Liquor Curing Treatment System | | Model | ECOO-TD9900-II-FX | | Machine Size | 1450*1080*1850mm | | Power Supply | 380V 50HZ | | Total Power | 4.5KW | | Weight | 260kg | | Processing Capacity | 5L/hour |
|
Intelligent Waste Liquor Curing Treatment System
Model
ECOO-TD9900-II-FX
Machine Size
1450*1080*1850mm
Power Supply
380V 50HZ
Total Power
4.5KW
Weight
260kg
Processing Capacity
5L/hour
❸ Functions
Special treatment of developing waste liquid, automatic collection,
extraction and online curing treatment.
❹ Usage Cost
Only electricity is used, with an average power consumption of 4
kwh per hour and no additional chemical agents use fee.
❺ System Efficiency
1. Cost effectiveness: solidification treatment of developing waste liquid, reducing the
cost of hazardous waste transportation and treatment;
2. Environmental protection effect: reduce 90% of the discharge of developing waste liquid, and the
distilled water quality reaches the national industrial wastewater
discharge standard above grade 2 (implementation basis: GB8978-2002).
