Rubber Offset Printing Blanket with Close Cell Compressible Layer Blanket E

Offset printing plate

Rubber printing plate

Printing &Coating blanket

Press rubber blanket

Printing material rubber blanket

Printing consumed blanket

Technical data

Model: ECOO-BL-E

Construction: 3 plys

Thickness: 1.97/1.70±0.02nm

Color: color

Compressible: Microspheres

Surface: Micro-ground and polished

Roughness: 0.9-1.1μm

Hardness: 76-80

Elongation: ≤1.2%

Tensile Strength: ≥80

Application: Strong universality, Prefer to package print

Speed capability: 9000 round/hour

Characteristic: Moderate compressible avoids moving image of machine and reduces the edge marking: Wide-range print. Prefer to carton print and full mold print

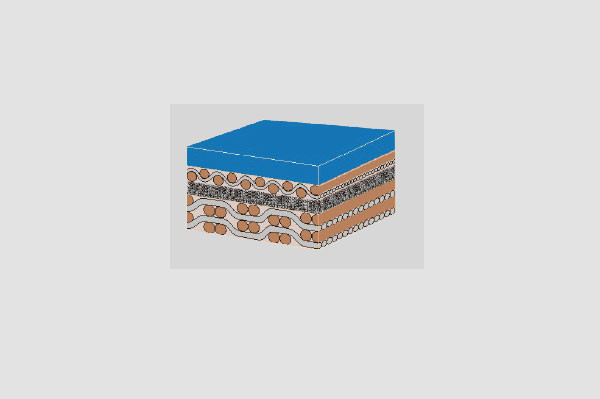

Structure

The printing blanket normally includes 3 layers as below:

1. a base non-woven fabric or a spun bonded non-woven fabric layer which is assigned to the printing cylinder,
2. a soft, highly resilient void-free compressible intermediate rubber layer which has closed gas pores
3. an outer-lying void-free layer of an elastomeric layer which faces toward the printing material.

About bar

We can offer blanket with or without bar, depending on customers’inquiry. $5 will be surcharged for each pair of bars. Please let us know the machine model or bar size if you need blanket with bar.

Dimension, back printing, package

We offer blanket in any sizes in sheet or in roll as below. The blankets will be rolled and packed in polymer bag and carton with enough protective layers. The customer can decide the content of back side, usually the logo or size.

Features (sales point)

1. High cost-effective. Our most economic blanket model as well as most popular seller. Could satisfy 85% printing jobs.
2. High compressive ability, which allows many types and printing material in different thickness
3. Wide range printing, prefer package printing on carton in moderate speed.
4. be excellent in the action of absorbing a shock such as a mechanical impact,
5. prevent the material to be printed from winding around the blanket cylinder

Application

1. Where does a blanket use in printing?

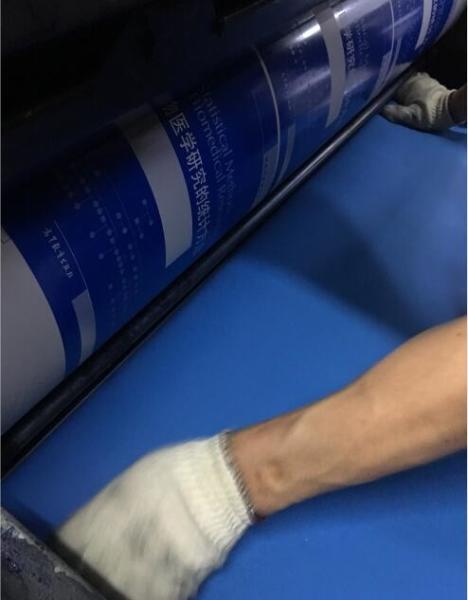

See below image. The blanket is used to cover the blanket cylinder (the intermediate cylinder) in each color unit within printing machine.

2. How does it work?

Simply speaking, the blanket is to transfer the image from plate onto paper. The image is “offset” onto the blanket and then to paper. The blanket created a smoother image on most types of paper and canprint on rough or heavy stocks as well as other media. Most offset presses use this lithographic method.

3. The Final products.

It is suitable for printing of coated papers, carton boards and the like. So the finish products of whole offset printing would be carton, coated paper, newspaper, magazine, and so on.

Maintenance

1. Clean the blanket with fast volatile organic solvents
2. Clean rolls when ink color changing or refilling
3. Release the blanket off the cylinder when the printing machine stopped for a long time
4. New blankets should be stored in dry and cool place covered with dark layer.

Other supporting consumables for your reference

Blanket wash

Roller wash

Rolls in any dimension

FAQ

Q1: Do you offer free sample? How long is the sample time of the shipping? Does the sample fee can be returned?

Since blanket is high value, we did not offer free sample. But we can offer favorable discount. It will take 5 days to prepare sample. If you place formal bulk order, we will refund the sample fee and courier cost.

Q2: About the sample what is the cost of transportation?

The freight depends on weight, packing size and your country or province region,etc.

Q3: How long can I expect to get the sample?

The sample will be ready for delivery in 3-5 days and will be sent via international express such as DHL, UPS, TNT, FEDEX and would be arrived within 3-5 days.
