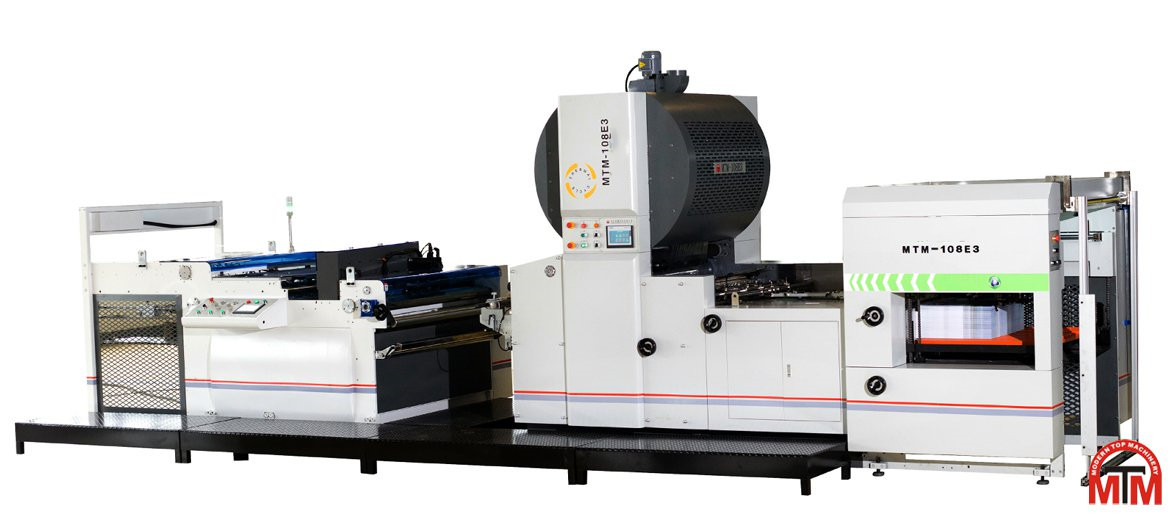

    Multi Functional Automatic Flute Laminator for Thermal Film Water Based Glue

    Ask Lasest Price
    Brand Name : ECOOGRAPHIX
    Model Number : ECOO MTM145E
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500SETS
    Delivery Time : 30DAYS
    • Product Details
    • Company Profile

    Multi Functional Automatic Flute Laminator for Thermal Film Water Based Glue

    Automatic Multi Functional Thermal Film Laminating Machine for Thermal Film


    MTM-E Series
    In order to satisfy for customers' high demands of laminating technology, our engineers team devote years to researching and testing, and combined with the characteristic of the best laminating technology in Europe, and finally launch the new automatic laminating machine with advanced technology . The outstanding features are with high speed, high quality, saving electricity and environment-friendly.

    PRODUCT DESCRIPTION
    * The machine is suitable for using water-based glue, solvent-based glue, and thermal film.
    * Cold-water non-curling system: The paper will be non-curling after separated.
    * Low cost: Ceramic anilox roller coating, minimize gluing amount to 5g/sqm.
    * The heating energy cycle drying system makes the whole machine power consumption about 30kw/h.
    * High efficiency:The machine working speed reaches to 70m/min, 10000sheets/h.


    Remarks:
    Laminating speed depend on paper weight, film thickness and gule material quality.
    Subject to change without notice.
    Standard Configuration: Selectable Configuration:
    1. Automatic Feeder 1.Cold Water Non-curling System
    2. Non-stop Feeding Device 2. Hot Knife
    3. Pre-loading Device 3.Anti-static System
    4. Laminating Host
    5. Automatic Sheeter
    6. Automatic Delivery
    7. Powder Removing Device

    Applications: Water-based Glue, Oil-based Glue, Thermal Film, Glueless Laminating Film
    SPECIFICATION

    MODEL/SPECIFICATIONMTM-108EMTM-130EMTM-145E
    Max. laminating width (mm)1,0801,0801,080
    Max sheet W×L (mm)1,080x9501,080x13001,080x1,450
    Min sheet W×L (mm)350x350350x350350x350
    Paper thickness (gsm)100-500100-500100-500
    Film thickness (µm)10--2510--2510--25
    Laminating speed (m/min)10-6010-6010-60
    Machine Dimension
    L×W×H (mm)
    10204×2366×290010300×2366×290012994×2366×2900
    Machine weight (kgs)8,5009,50010,200
    Total power (kw)63-6863-6863-68
