    Auto Thermal Paper Slitting Rewinding Machine For ATM Paper Roll

    Automatic Thermal Paper Slitter and Rewinder Machine for ATM Paper Poll
    ECOO-T1400C


    EcooGraphix T-1400C is used for making all kinds of thermal paper rolls, including fax paper roll, ECG paper roll, medical record paper roll, POS roll, ATM roll, cash register paper roll, etc.


    1. Features

    1) SIEMENS PLC control system and touch screen, all the parameters are displayed on the monitor. Just setup the roll diameter, material thickness, initial tension, the machine runs automatically.


    2) Shaftless hydraulic loading system, Max. load capacity is 3 tons.


    3) 20Kg/m2 electromagnetic brake for unwinding tension control.


    4) CNC processed & heat-treatment foothold wall panel, no deformation.


    5) Unwinding section equips with direction adjustable balancing roller, ensures roller itself keeping tight touch with whole web.


    6) Dynamic / static balancing transmission rollers.


    7) The upper circular knives are fixed by screws, and the lower circular knives are fixed by aluminum spacer, cutting precision could be guaranteed.


    8) Automatic tucker tucks the tail, convenient for quickly trigger rewinding.


    9) Load cell sensor & automatic tension controller ensures constant tension.


    10) Automatic meter counter, when reaches preset length, machine stops automatically.


    11) Overlapping problem could be avoided with banana roller.


    12) Equipped with emergency switch.


    13) CCD digital camera sensor or photocell for web guiding.


    2. Main Parameters:

    Model TypeEcoo-T1400C
    Max. Unwinding Width1400mm
    Max. Unwinding Diameter1200mm
    Max. Rewinding Diameter310mm
    Min. Slitting Width25mm
    Max. Machine Speed210m/min
    Main Power3.7Kw
    Total Power6kw
    Unwinding ShaftHydraulic Shaftless Unwinder to fix 3’’ 6’’ core
    Rewinding Shaft0.5’’, 1’’ or as your request
    Weight4000Kgs
    Overall Dimension3100*2100*1900mm


    Application Material

    All kinds of thermal paper, including fax paper, cash register paper, ATM paper, medical
    record paper, self-adhesive trade marks, films and so on.

    Unwinding Section

    Ø Hydraulic Shaftless Unwinder to fix 3’’ 6’’ core which more easier to loading material

    Ø Electromagnetic Brake from Taiwan

    • Fully automatic tension controller
    • One set of Photocell to tracking the precision
    Slitting Section

    Ø Disc cutter

    Ø Cutter with adjustable and movable blade base.

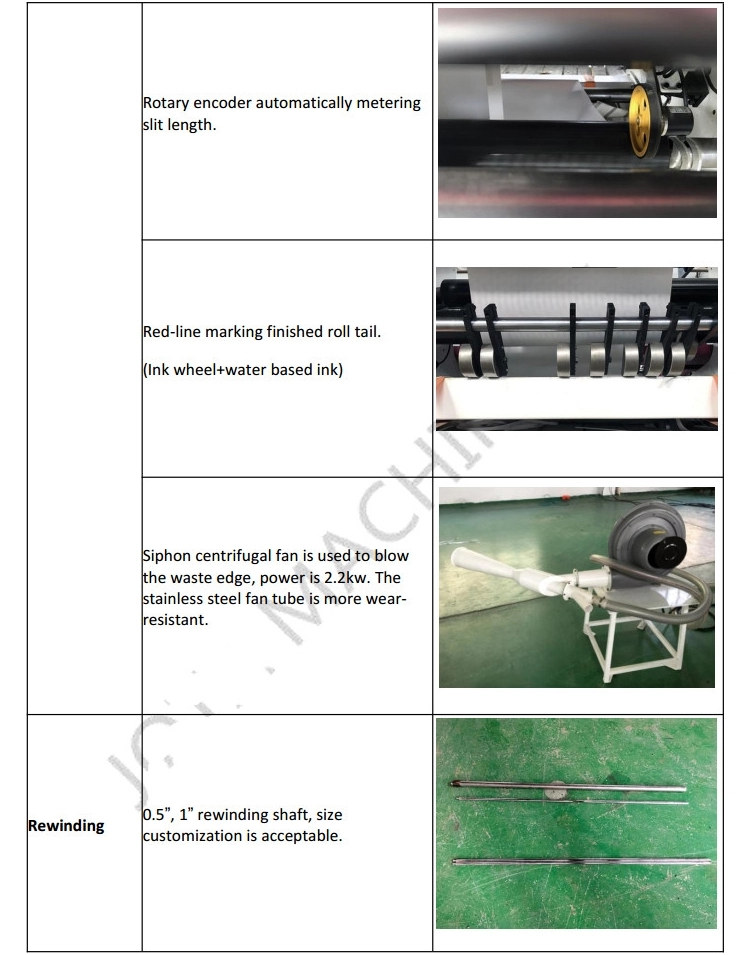

    • Meter counter
    • Banana Roller which can avoid overlapping problem completely.
    Rewinding Section

    Ø 0.5”,1” or as your request

    Ø Surface Rewinding technology, it adopts vertical method to press the rewinding roll

    Ø Electromagnetic Clutch from Taiwan

    • Surface Rewinding technology
    • Automatic cutting & gluing unit
    Controlling Section

    Ø Siemens PLC & HMI from Germany

    Ø All the parameters are displayed on the monitor

    • Low voltage electrical appliances all from Schneider
    Trimmed Waste

    Ø It adopts air blower to blow waste material off, the air blower power is 0.75kw.

    • Air blower pipe is more wear-resisting.
    Optional
    • Safety guard for the slitting device.
    • Emergency Switches on the 4 corner of machine.
    • Wrapping Line
