Brand Name : | ECOOGRAPHIX |
Model Number : | YFMA590 |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | L/C, T/T |
Supply Ability : | 500SETS |
Delivery Time : | 30DAYS |

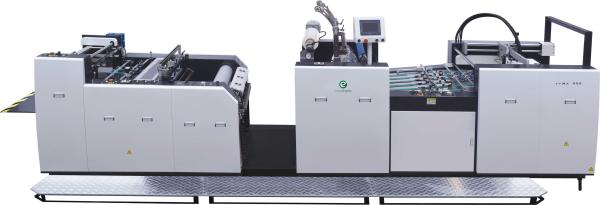

A2 Book Cover Laminator For OPP PVC Thermal Film
In order to satisfy for customers' high demands of laminating
technology, our engineers team devote years to researching and
testing, and combined with the characteristic of the best
laminating technology in Europe, and finally launch the new
automatic laminating machine with advanced technology . The
outstanding features are with high speed, high quality, saving
electricity and environment-friendly.
PRODUCT DESCRIPTION
* The machine is suitable for using water-based glue, solvent-based
glue, and thermal film.
* Cold-water non-curling system: The paper will be non-curling
after separated.
* Low cost: Ceramic anilox roller coating, minimize gluing amount
to 5g/sqm.
* The heating energy cycle drying system makes the whole machine
power consumption about 30kw/h.
* High efficiency:The machine working speed reaches to 70m/min,
10000sheets/h.
Remarks:
Laminating speed depend on paper weight, film thickness and gule
material quality.
Subject to change without notice.
Standard Configuration: Selectable Configuration:
1. Automatic Feeder 1.Cold Water Non-curling System
2. Non-stop Feeding Device 2. Hot Knife
3. Pre-loading Device 3.Anti-static System
4. Laminating Host
5. Automatic Sheeter
6. Automatic Delivery
7. Powder Removing Device
Applications: Water-based Glue, Oil-based Glue, Thermal Film, Glueless
Laminating Film
SPECIFICATION
Model | Ecoo YFMA-590 |
Max. Sheet(W x L) | 590*760mm |
Min. Sheet(W x L) | 200*240mm |
Machine Speed | oneside:0~80m/min |
Paper Thickness | 100~450g/m2 |
Voltage | 380V |
Paper feed height | 680mm |
Paper stack height | 650mm |
Laminating Temperature | 80-110℃ |
Power required | 18kw |
Dimension(L x W x H) | 5500*1300*1800 mm |
N.W. | 4000kg |
![]() |
