Shake Proof Steel Frame 3D Sand Mold Printer 600DPI

    Buy cheap Shake Proof Steel Frame 3D Sand Mold Printer 600DPI from wholesalers

    Buy cheap Shake Proof Steel Frame 3D Sand Mold Printer 600DPI from wholesalers
    • Buy cheap Shake Proof Steel Frame 3D Sand Mold Printer 600DPI from wholesalers

    Shake Proof Steel Frame 3D Sand Mold Printer 600DPI

    Ask Lasest Price
    Brand Name : ECOOGRAPHIX
    Model Number : S800
    Certification : CE,SGS
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 300SETs
    Delivery Time : Within 20days
    • Product Details
    • Company Profile

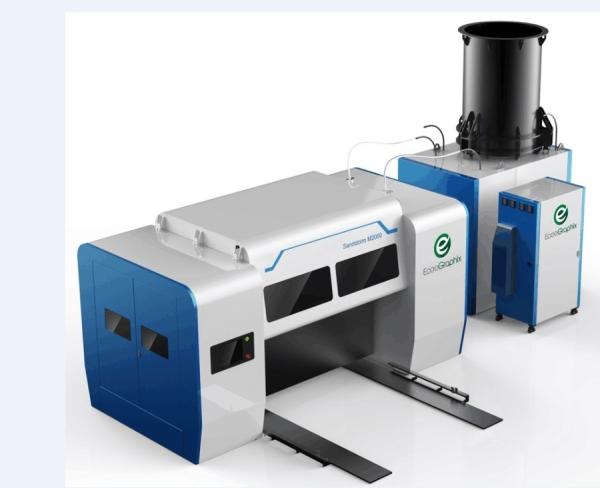

    Shake Proof Steel Frame 3D Sand Mold Printer 600DPI

    Automatic Digital 3D Printing Sand Mold 3D Printer for Customized Production


    Features:

    1) Tailor made for customer

    Self- produced print head and electronic control drive system, available with 256, 512 series of print head for users to choose. To improve the printing efficiency, the quantity of print head, DPI resolution and size of ink droplet can be tailor-made according to the requirement of customer.


    2) 1µm precision

    The main motion framework adopts linear drive combination of linear motor and raster ruler. And the precision of raster ruler reaches up to 1µm, which reduces the volume of product and improves the reliability, speed and precision of motion.


    3) 25 seconds/layer building speed

    With 25 60Lh building speed, t0.3mm product accuracy and the printing time for one job box within 12+2 hours, the performance achieves the top level of international sand type 3D printer, and the sanding speed is higher than any product of the same model.


    4) Consumables-free fresh sand processing system

    Adopt CFD calculation method to optimize the sand processing system. which makes consumables like filter not be needed during sand processing, achieving energy conservation and emission reduction.


    5) Steel frame

    Adopt steel frame to make the overall rigidity, shake proof and fatigue life improve a lot, and the standalone electronic control cabinet brings faster disassembly, easier installation and maintenance.


    Specification:



    ECOO 3D Printer Machine Specifications

    ModelS800
    Job Box Volume

    Normal size: 800x500x400(160L)

    Limited size: 900x600x400

    Layer Thickness0.15-0.5mm
    Build Speed25-60 L/h
    Print Resolution600DPI
    Motion Control Accuracy±3ᶣm
    Product Accuracy±0.03mm
    Max Consumption8KW
    ConsumableSand, resin and curing agent
    Customization SupportedSupported
    Demension5200 x 2200 x 3000
    Weight2.8T
