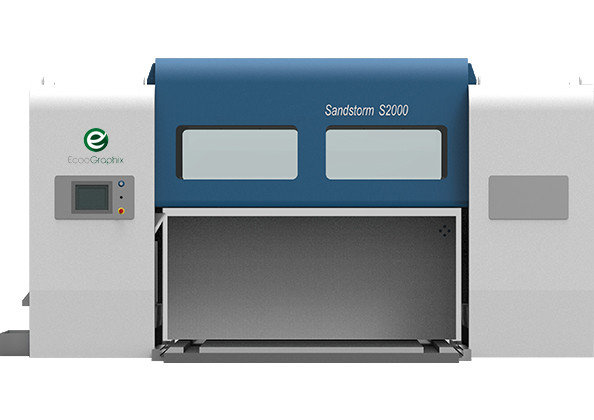

3D Sand Mode Digital Printer With High Speed
TAILOR-MADE FOR CUSTOMER
In responding to different printing needs, the quantity of print
heads, resolutions, and size of ink droplets are tailor-made for a
customer.
A MAXIMUM OF 130L/H BUILD SPEED (0.3MM LAYER THICKNESS) SUPPORTED
Product accuracy being土0.3mm when printing≤400mm product at the
speed of 95- 130L/h and土0.1% when printing > 400mm product, as
well as the time for completing one job box being controlled within
12-14.5 hours, the performance achieves the top level of
international sand mold 3D printer, and the sanding speed is higher
than any product of the same model.
3μm MOTION CONTROL PRECISION
With the combination of linear motor and raster ruler, the
precision of the raster ruler reaches up to 1μm, improving the
operation reliability, speed, and precision and reducing the volume
of the device.
CASTIRON FRAME
With cast iron frames adopted, the structural stability and
reliability are improved to a new level, which reaches the general
requirements of the machine tool.
DOUBLE JOB BOXES WORKING 24H A DAY
With standard double job boxes equipped, one job box is still
clearing sand while another one has already been working,
continuously working 24 hours for you.
FULLY AUTOMATIC SAND PREPARATION
After manually loading the sand into the sand tank for the first
time, all of the remaining work, including sand mixing and feeding,
etc. will be automatically finished without any human intervention
| ECOO 3D Printer Machine Specifications |
| Model | S2000 |
| Job Box Volume | Max. size: 2000x1000x800 mm (1.6 CBM) |
| Layer Thickness | 0.3-0.5mm |
| Build Speed | 127 L per hour (0.3mm thickness) |
| Print Resolution | 400 DPI |
|
| Motion Control Accuracy | ±3ᶣm |
| Product Accuracy | ±0.03mm when less than 400mm Less than ± 0.1% when over 400mm |
| Max Consumption | 28KW, three-phase power |
| Average Consumer | 4 – 6.5 KW |
| Consumables | Sand, resin, and curing agent |
| Customization Supported | Supported |
| Dimension of All Units | 12 x 7 x 6 m |
| Dimension of Printer | 6 x 6.3 x 2.8 m |
| Working environment | Temperature: 16-38℃ Humidity: 45-60% |
