Automatic Sealing Snack Paper Box Erecting Machine With Online
Flexo Printing
EcooGraphix is a professional supplier of eco-friendly paper
processing machines and paper products. Following the enterprise
development mission of “Create Value for Customers”.
At the beginning of 1990s, the production of snack boxes (such as ice cream paper cone, hamburger box, etc.) mainly relied on manual operation or machines imported from
Europe and North America. The poor sanitary condition, low product
consistency, low efficiency, expensive imported machines, long
delivery period and high service cost all restricted the
development of domestic paper production enterprises. However,
Chinese national industries still developed rapidly and Dayuan was
resolute to enter this completely new industry.
Features of Carton Erecting Machine
1. The finished products are counted automatically by a counter
device.
2. It has low load power, 5KW and 8KW. Speed adjust by inventor
brings more accurate.
3. The carton erecting machine uses a PLC encoder, has high
automatic function, easy to operate and adjust, and causes less
fault.
Maintenance is convenient.
4. It uses a servo control system, making it more smooth, accurate,
stable and with small vibration.
Technical Specification
1.Voltage: 380V/50HZ
2.Covering Area: 4.0M*1.2M
3.The total Power: L800-A:8KW
L800-C:5KW
4.Maximum Production Speed: 200 pcs/min
5.Air Pressor:0.6Mpa(Dryandclean compressed air)
6.Packing:
2980mm* 1560mm* 1320mm,
N.W.: 1500KG,G.W.: 1600KG 1310mm*1170mm*900mm,
N.W.: 250KG,GAN.: 290KG
7.Materials: Paper Board 200-600gsm; corrugated board paper with
thickness not exceed 1.5MM.
The differences between L800-A and L800-C:
1.L800-A adopts servo system to control the punching head,but
L800-C adopts mechanical device to control the punching head,so
L800-A iseasier to change different box than L800-C.
2.L800-A is better to make eight corners boxes than L800-C.
| Machine type | L800-A |
| Blank length | L | 100mm-450mm |
| Blank width | B | 100mm-630mm |
| Height of side flaps | H | 15mm-250mm |
| Height of side flaps+lid | HI | 50mm-250mm |
| Conicity | | 5°-40° |
Machine Specification
| Voltage | 380V/50HZ |
| Covering Area | 4.0M*1.2M |
| The total Power (L800-A) | 8KW |
| The total Power(L800-C) | 5KW |
| Maximum Production Speed | 200 pcs/min |
| Air Pressure | 0.6Mpa(Dry and clean compressed air) |
| Materials | Paper Board 200-600gsm; corrugated board paper with thickness not
exceed 1.5MM. |
| Machine Model NO | L800-A and L800-C |
| The differences between L800-A and L800-C | 1.L800-A adopts servo system to control the punching head,but
L800-C adopts mechanical device to control the punching head,so
L800-A is easier to change different box than L800-C.
2.L800-A is better to make eight corners boxes than L800-C. |

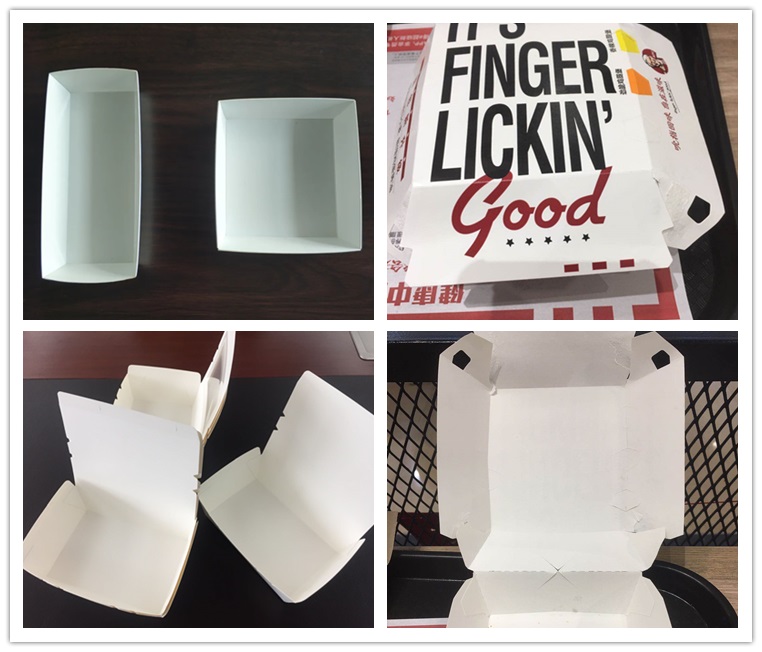

| Paper Box Sample | Free |
| Sample time | 1-3 days |
| Production Time | 45 days |
Shipping And Packaging
| Shipping | By sea, or as your requirement to do |
| Packaging | By Strong Wooden Case |
| Packaging Dimensions | Case 1 | Size: 2980mm* 1560mm* 1320mm |
| Net weight : 1500KG |
| Gross weight: 1600KG |
| Case 2 | Size:1310mm*1170mm*900mm |
| Net weight :250KG |
| Gross weight:290KG |
FAQ:
Q:Why choose us ?
A: We are manufacturer .We have strict QC policy to control the
producing process,strong technica team and after-sales service team
to offer best support,try our best to exceeding your expectations.
-Inquiry will be replied with 24 hours.
-OEM service is available.
-Protect your design & information.
Q:Do you have the CNC workshops ?
-We have our own CNCworkshops,we produces the molds by ourselves.
Q: Can I have sample before order?
A: Yes ,free samples can be sent out,the freight cost is paid by
you.
(1).You can provide your a/c like DHL/Fedex/TNT ect.
(2).You can call your courier to pick up at our office.
(3).You can pay us the freight cost by T/T.
Q: Can you make the customized paper cone ?
A: Yes , please show us your sample first .
Q: What time for delivery ?
A: Machine about 45 days after get your deposit.
Q: Engineer oversea service ?
A: Yes ,we can send engineer to help you install ,training worker
until the machine normal running.
-If you meet any problem at any time,we could offer the technical
support on line as well.
Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight or
D/P etc.
Q: Do you have any certificates?
A:We have CE and ISO certificates .
Q: Where is your factory located ? How can I visit you?
A: Our factory is located at Wenzhou city ,Zhejiang province .We
can pick you up from either Wenzhou airport or Shanghai airport or
Wenzhou station by high-speed rail.
Q:How can I contact you ?
A:You can contact us by Email / Whatsapp / Wechat / Telephone .
