Single Layer EcooGraphix Positive Thermal Offset Plate For CTP Machine
1. Application
EcooGraphix Thermal CTP Plate(Single Layer) is able to meet various
requirements of high grade commercial and newspaper printing. It
has the advantages of fast plate making speed, high tolerance
level, precise half-tone dot reproduction, good ink balance and
high press run length.
2. Characteristic
1) High quality aluminum, composite grain and high press runs.
2) Capable of bright room operation.
3) High resolution and precise half tone dot reproduction.
4) High development tolerance level and convenient operation.
3. Specification
| Model | ECOO-ES |
| Plate Type | Positive Thermal CTP Plate |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically grained and Anodized lithographic aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Coating | Single-layer coating, IR sensitive |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40 mm |
| Maximum short grain width | Maximum width 1280 mm |
| Plate intermix | Kodak Electra Excel HRL/HRO Thermal Plates, Kodak Sword
Ultra Thermal Plates, Kodak Capricorn Excel Positive Plates, Kodak
PP3 positive plates, Agfa Energy Elite, etc. |
| Length of Run | Unbaked: 80000 to 100,000 impressions; Baked: Over 100000 impressions |
Exposing |
| Plate setters | Kodak Trendsetter/Lotem/Magnus; Fuji Javelin T9000HS; Heidelberg
Topsetter/Suprasetter; Screen PT-R; Creo Scitex, or EcooGraphix
thermal CTPT series |
| Exposure energy | 90 - 120 mj/cm² |
| Spectral Sensitivity | 800 - 850 nm – Peaks 830nm |
| Resolution | 1 - 99% @300 LPI |
| FM capability | 20 micron stochastic |
| Image color | Blue |
| Developing |
| Processor | All Brands |
| Developer | Kodak Gold Star or our own developer |
| Processing temperature | 23°C +/- 2°C |
| Developing time | 25 - 30 sec |
| Processing Speed | 0.80 - 1.20 m/min |
| Storage And Handling |
| Safe Light | Daylight handling |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging
options, such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold,
heat and humidity. |
Recommended Image Data
CTP model/Data
| Kodak trendsetters | LOTTEM 400(TH1.7) | MAGNUS 400 | Screen 8600S |
| Laser power | 13-15W | 270-280mw | 17-19W | 70-80 % |
| Drum speed | 250-300rpm | 850-900rpm | 400-450rpm | 800-900rpm |
| Resolution | Customized | Customized | Customized | Customized |
| Parameter that need set up | Focus／ Zoom | Focus／ Zoom | Focus／ Zoom | Focus／ Zoom |
*Note: Higher exposure energy will make the image contrast more
clear, and benefit to the plate run length;
while over high/low exposure energy will affect the image quality
negatively.

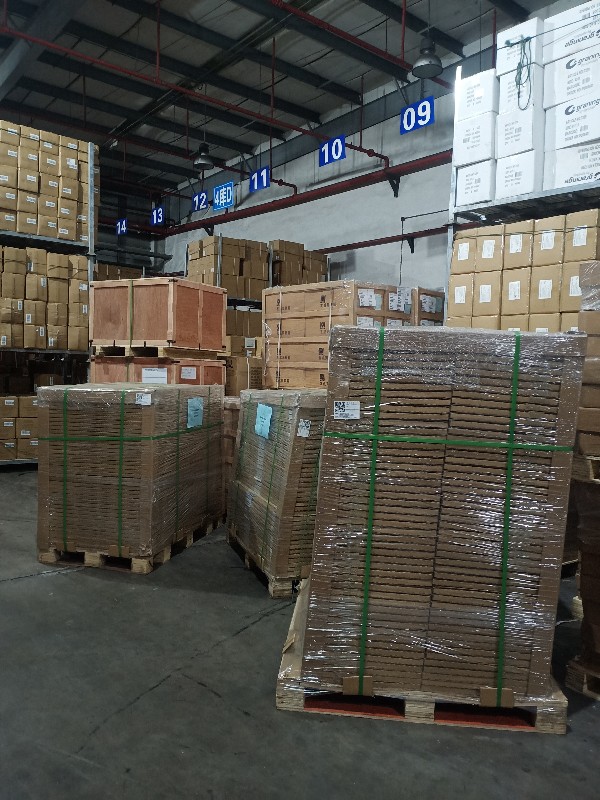

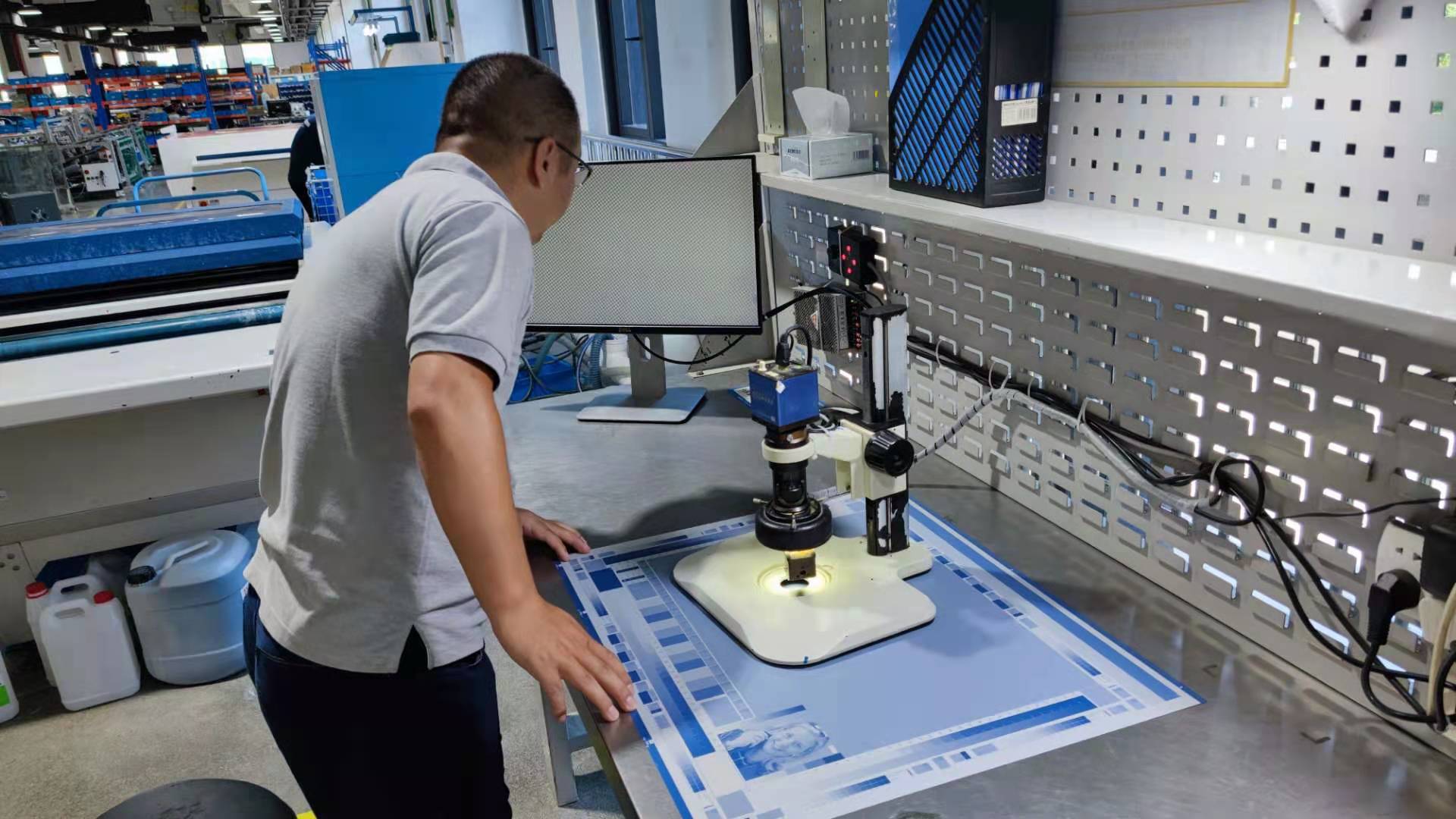

4. Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
5. Certificates
6. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15 pieces plates for free, but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the pick-up service from
your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai.
