Non-ablation UV-negative Type Development On Press Processless CTCP Plate
1. Application
EcooGraphix ECOO-H is a new, environmentally friendly, Development
On Press CTP plate. It can be run directly on a printing press
after imaging, without a need for chemical processing.
2. Characteristic
ECOO-H is double layer, and the emulsion layer will not dissolve
into water, so it will not integrate into fountain solution; While
the protection layer is well water-soluble, and it will be easy
dissolved into the fountain solution.
3. Specification
| Model | ECOO-H |
| Plate Type | Non-ablation UV-negative type |
| Application | High grade commercial and newspaper printing |
| Substrate | Electrolyte graining and Anodized AL substrate |
| Thickness | 0.15mm/ 0.30mm |
| Maximum Short Grain Width | Maximum width 1,280 mm |
| Photosensitive Wave Length | 405 nm |
| Platesetter | Various dominant UV platesetters in the market |
| Image Color | Gray |
| Low-energy Imaging | 20 mj/cm² |
| The Period Of Latent Image Stabilization | ≤ 7 days |
| Recommended Screen Method | 1-99 @200 Lpi AM/ 20u FM and mixture |
| The Paper Number Of Start-up | < 50 sheets |
| Safety Light | 1 hour under fluorescent lamp, no direct irradiation with natural
light, 4 hours under yellow light |
| Processing | Without processing, directly on press |
| Run Length | 100,000 impressions, Actual run length depends on printing conditions |
| Shelf Life | 12 months under recommended |
| Transportation | Packed in seal and stored by means of preventing from light/
moisture, over heat and high humidity |
| Storage | Recommended condition: 18℃-24℃, 40%-50% RH |

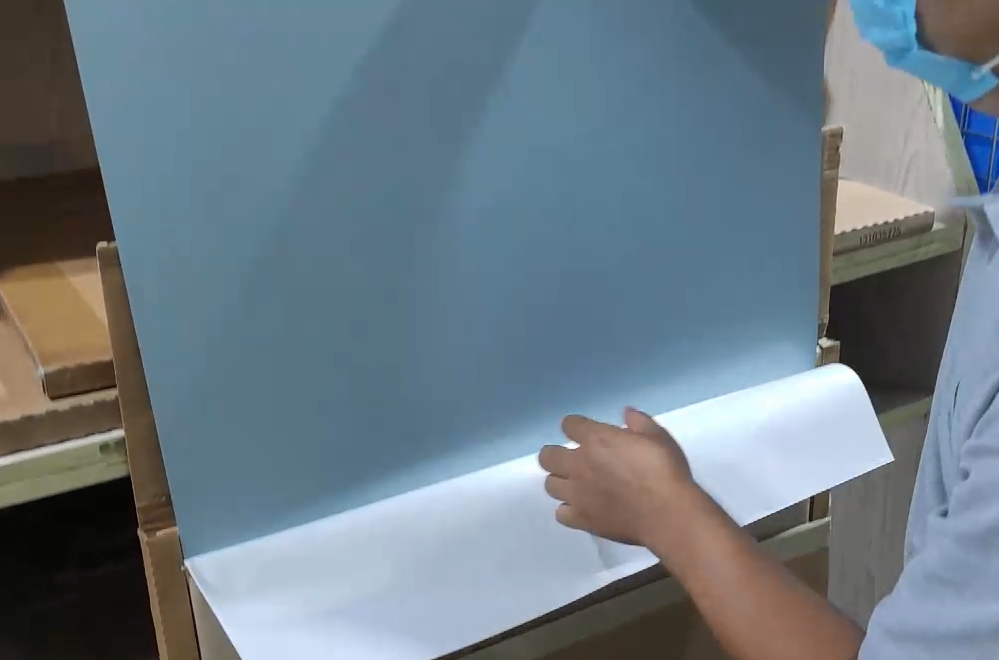

4. Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
5. Certificates
6. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15 pieces plates for free, but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the pick-up service from
your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20’ container ?
A: About 20000-25000SQM.
