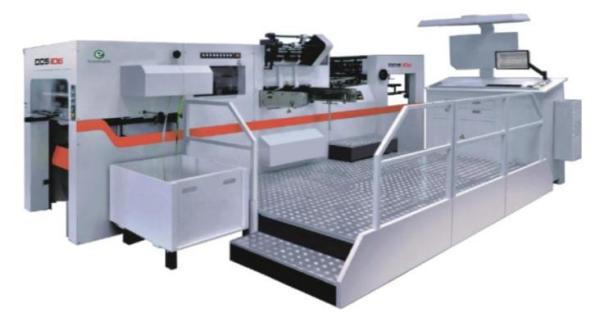

1060x760mm 7000S/H Automatic Hot Foil Stamping Die Cutter
◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷
* * • Brief Introduction • * *
DDS106 automatic hot stamping foil die cutting machines can work on hologram stamping and other special stamping, the
customers who want the high end product with good stamping result
choose this model.
◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷
* * • Specifications • * *
Model ECOO-DDS106
Max. Sheet Size(mm) 1060x760
Min. Sheet Size(mm) 430x350
Max. Die Cutting Size(mm) 1060x746
Max. Stamping Size(mm) 1020x660
Height Of Cutting Rules(mm) 23.8
Max. Pressure(N) 250x104
Stock Range Min. Sheet 175g/m²; Cardboard 157-2000g/m²; E, B flute
Min. Gripper Margin(mm) 9
Max. Machine Speed(s/h) 7000
Max. Stamping Speed(s/h) 7000
Longitudinal Feeding Shafts 4 (Optional 6)
Transversal Feeding Shafts 2
Feeding Pile Height(mm) 1400
Delivery Pile Height(mm) 1100
Electric Heating System 12 zones
Min. Foil Width(mm) 20
Foil Reel Core(mm) 25(1") 76(3")
Rated Power(kw) 50
Air Supply 0.8-1.0 MPa, ≥ 0.6m3/min
Overall Dimension(mm) 5850x4600x2280
Weight Of Machine(kg) 20000
| Model | ECOO-DDS106 |
| Max. Sheet Size(mm) | 1060x760 |
| Min. Sheet Size(mm) | 430x350 |
| Max. Die Cutting Size(mm) | 1060x746 |
| Max. Stamping Size(mm) | 1020x660 |
| Height Of Cutting Rules(mm) | 23.8 |
| Max. Pressure(N) | 250x104 |
| Stock Range | Min. Sheet 175g/m²; Cardboard 157-2000g/m²; E, B flute |
| Min. Gripper Margin(mm) | 9 |
| Max. Machine Speed(s/h) | 7000 |
| Max. Stamping Speed(s/h) | 7000 |
| Longitudinal Feeding Shafts | 4 (Optional 6) |
| Transversal Feeding Shafts | 2 |
| Feeding Pile Height(mm) | 1400 |
| Delivery Pile Height(mm) | 1100 |
| Electric Heating System | 12 zones |
| Min. Foil Width(mm) | 20 |
| Foil Reel Core(mm) | 25(1") 76(3") |
| Rated Power(kw) | 50 |
| Air Supply | 0.8-1.0 MPa, ≥ 0.6m3/min |
| Overall Dimension(mm) | 5850x4600x2280 |
| Weight Of Machine(kg) | 20000 |
◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷
* * • Feeder • * *
★. Conjugate cam mechanism for sheets feeding
☆. Adjustable suckers head angles to handle different kinds of
materials
♦. Non stop sheet loading
♥. Automatic feeding table up and down
♠. Manual adjust on front registration synchronized with auto
running

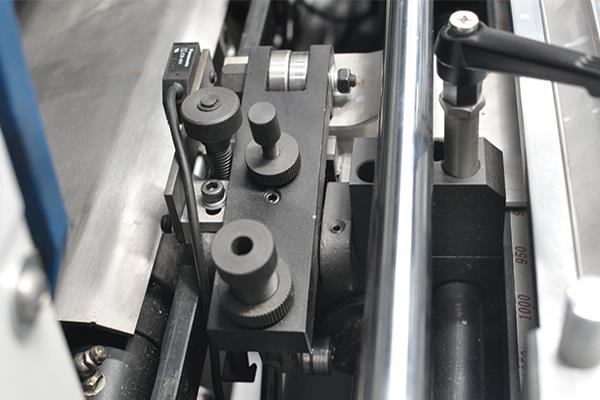

♣. Micro adjustable side lays with pull/push in one
△. Side lays with photoelectric detection
▽. 4 Independent front lays with photoelectric detection
○. Accurate reposition of the distance between the platens, less
than 0.01mm
★. Digital pressure display
☆. Center line system
♦. 7 Specially hardened alloy gripper bars, each bar is adjustable
to secure accuracy
♥. Tri-point gripper bar registration provides high accuracy in
round registrations
♠. Pretensioned main chain with lower extension
♣. Cam mechanism for gripper bar drive assures smooth and accuracy
running
△. Torque clutch protects index box from concussion on gripper bar
▽. Cam mechanism for gripper finger control assures precise sheet
registration
○. Specially designed dwell function for stamping
★. Automatic and timing lubrication
◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷
* * • Producing And Packaging • * *
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷
* * • Certificates • * *
◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷ ◀ ▶ ◁ ▷
* * • FAQ • * *
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
Q3: Is there any certification for your CTP processor ?
A: Yes, all our machines have been certified by SGS and CE.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support
?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets, service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are
also many end users(printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
These end users printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hassle on installations, training and after sales service. We
guarantee your satisfaction.
