    Water Or Alcohol Dampening Double-side Offset Printing Press

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO HSS 1040H/ HSS 1040W
    Certification : ISO9000, CE
    Payment Terms : L/C, T/T
    Supply Ability : 500 Sets/Year
    Delivery Time : 45 Days
    Price : Negotiable
    • Product Details
    • Company Profile

    Water Or Alcohol Dampening Double-side Offset Printing Press


    Water Or Alcohol Dampening

    Double-side Offset Printing Press




    ➷➷➷ Features


    Mechanical double sheet inspection

    Alloy steel gear

    Precision tapered roller bearings for printing cylinders adopts

    Grippers closed at cam's high point, open type impressing transfer cylinders

    Plate positioning system

    Plate cylinder axial and circumferential adjustment

    Fountain solution volume tracking system

    Human machine interface operating system

    Visual fault display system

    Pneumatic control for ink rollers and dampening rollers

    Splash lubrication system

    Anti-static device

    Available in water and alcohol dampening




    ➹➹➹ Specifications


    Model
    ECOO HSS1040H/1040W

    Max. Sheet Size
    720*1040mm

    Min. Sheet Size
    710*1040mm

    Min. Sheet Size
    393*546mm

    Machine Speed
    10000sph

    Paper Thickness
    40-200g/m2

    Plate Size
    800*1055*0.3mm

    Packing Size
    735*1055*0.45-0.50mm

    Blanket Size
    960*1055*1.95mm

    Max. Feeder Pile Height
    1800mm

    Max. Delivery Pile Height
    950mm

    Main Motor Power
    11kw

    Machine Size
    6800*3800*2350mm

    Weight
    17500kg

    ModelECOO HSS 1040H/ HSS 1040W
    Max. Sheet Size720*1040mm
    Max. Printing Size710*1040mm
    Min. Sheet Size393*546mm
    Machine Speed10000sph
    Paper Thickness40-200g/m2
    Plate Size800*1055*0.3mm
    Packing Size735*1055*0.45-0.50mm
    Blanket Size960*1055*1.95mm
    Max. Feeder Pile Height1800mm
    Max. Delivery Pile Height950mm
    Main Motor Power11kw
    Machine Size6800*3800*2350mm
    Weight17500kg
    Water Or Alcohol Dampening Double-side Offset Printing PressWater Or Alcohol Dampening Double-side Offset Printing PressWater Or Alcohol Dampening Double-side Offset Printing PressWater Or Alcohol Dampening Double-side Offset Printing Press

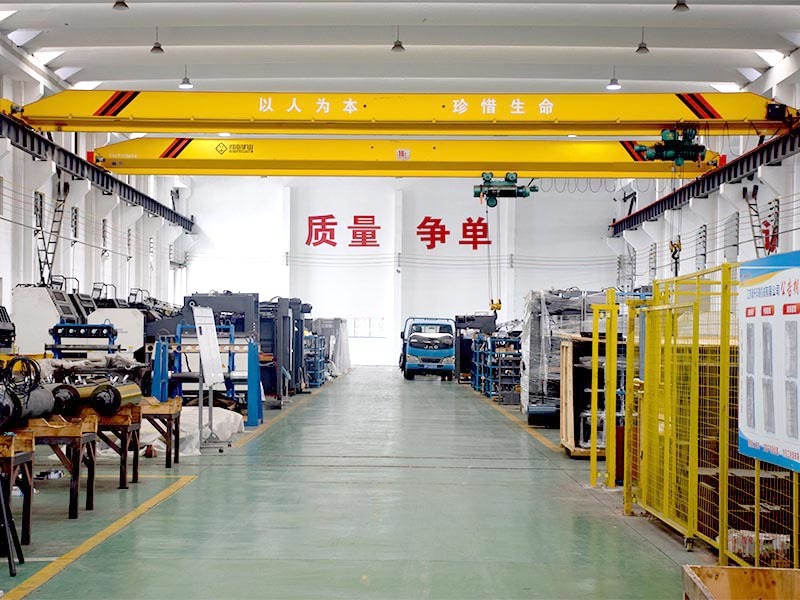

    ➷➷➷ Producing And Packaging


    From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.








    ➹➹➹ Certificates






    ➷➷➷ FAQ



    Q1: What are your main products ?

    A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

    You can get the equipment and consumables all in one and no worry about the after-sales service from our company.



    Q2: Where is your factory ?


    A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!



    Q3: What is your warranty for the CTPs ?


    A: Three years' laser head and main spare parts for the CTPs, one year for the processor.
    If the customer uses EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.



    Q4: Can you also supply the Workflow and RIP ?


    A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.



    Q5: What about the installation and after-sales technician support ?


    A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.


    These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
