1200mm/s Best Corrugated Paperboard Digital Paper Cutter Machine
^ Specifications
Model No.
CB03II-1113
Multi-functional Tool Head
Easy to change different tools. Engraving and router.
Oscillating thorough Cutting/ Kiss cutting/ Creasing/ Plotting/
Laser positioning and precise camera registration.
Tools
Various kinds of cutting blades, different size of creasing wheels.
Safety Device
Infrared sensor, which is responsive, safe and reliable.
Moving Speed
Up to 1500mm/s
Cutting Speed
Up to 1200mm/s(Depends on kind of materials)
Cutting Thickness
≤ 50mm(Customize according to different materials)
Cutting Materials
All kinds of corrugated paperboard, Grey board, KT board, PVC
expansion sheet, Honey comb board,
Car sticker, Light Slide, PP gum, Flag banner, EPE foams, EVA, PVC
plate, Acrylic, Thick foam, etc.
Cutting Material Affixed
Smart(optional)individual multi-zone vacuum suction.
Repeatability
± 0.05mm
Interface
Ethernet Port
Numerical Control Panel
Multi-language LCD Touch Screen
Transmission
Imported(Digital servo motor, straight rail, synchronous belt,
guide screw)
Rated Power
7.5 KW
Rated Voltage
380V/220V±10%, 50HZ/60HZ
Working Temperature
10 to 35 degree Celsius
Effective Cutting Area
1100x1300mm
Machine Size
2250x2320x1280mm
P.S.: We reserve the rights of final explanation, no further
information for any exchanging
| Model No. | CB03II-1113 |
| Multi-functional Tool Head | Easy to change different tools. Engraving and router. Oscillating
thorough Cutting/ Kiss cutting/ Creasing/ Plotting/ Laser
positioning and precise camera registration. |
| Tools | Various kinds of cutting blades, different size of creasing wheels. |
| Safety Device | Infrared sensor, which is responsive, safe and reliable. |
| Moving Speed | Up to 1500mm/s |
| Cutting Speed | Up to 1200mm/s(Depends on kind of materials) |
| Cutting Thickness | ≤ 50mm(Customize according to different materials) |
| Cutting Materials | All kinds of corrugated paperboard, Grey board, KT board, PVC
expansion
sheet, Honey comb board, Car sticker, Light Slide, PP gum, Flag
banner, EPE foams, EVA, PVC plate, Acrylic, Thick foam, etc. |
| Cutting Material Affixed | Smart(optional)individual multi-zone vacuum suction. |
| Repeatability | ± 0.05mm |
| Interface | Ethernet Port |
| Numerical Control Panel | Multi-language LCD Touch Screen |
| Transmission | Imported(Digital servo motor, straight rail, synchronous belt,
guide screw) |
| Rated Power | 7.5 KW |
| Rated Voltage | 380V/220V±10%, 50HZ/60HZ |
| Working Temperature | 10 to 35 degree Celsius |
| Effective Cutting Area | 1100x1300mm |
| Machine Size | 2250x2320x1280mm |
^ Core Technology
○ High end 6-axis speed motion control system.
★ Integrated softwares control of high performance.
☆ High standard design for long time batch production.
♥ Conveying flatbed design, with optional automatic board loading
system, achieves automatic production of rolls and board material,
shortening tack time and improving efficiency.
♣ Digital fine tuning for kiss-cut and thorough cut, dotted line
and creasing.
♦ New intelligent sub-area vacuum suction with high suction
force(small cutting material appressed closely anf firmly to the
mat easily).
^ Standard Tools Configuration
○ Two multi-tool module
★ Plotting pen
☆ Laser locating pointers(for manual alignment)
♥ Proximity sensor and emergency stop
♣ Vacuum table with individul area vacuum pump
♦ Auto-cut depth setting device
♠ Touch screen controls
△ Sound absorber
▽ Air compressor
○ Software with dongle
STANDARD TOOLS FOR PACKAGING
Optical registration(camera) tool
Electric oscilating knife tool
Non-oscilating knife tool
Kiss-cut tool
^ Features
  |
Auto precise cutting depth setting makes cutting precise and
accurate. |
Intelligent cutting head to suit different cutting material and
achieve cutting shape. |
Conveyor belt bed system enables continuous loading and cutting,
shortening take time. |
Anti-spectral HD positioning system captures the image of material
quickly and continuously, with the help of our software to make
cutting more perfectly. |
Automatic register system, the visual scanning and positioning
system with CCD camera, makes cutting most precise and
continuously. |
^ Some Guidelines For Cutting Heads

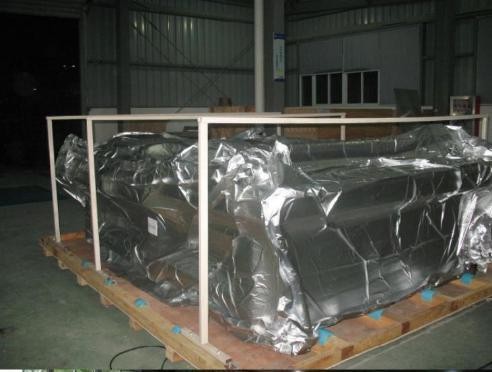

^ Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
^ Certificates
^ FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
Q3: What is your warranty for the CTPs ?
A: One year warranty of defects in materials and workmanship (except
the consumables like blades and mat) the full life-time Remote
service support for products.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support
?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets, service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are
also many end users(printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
These end users printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hassle on installations, training and after sales service. We
guarantee your satisfaction.
