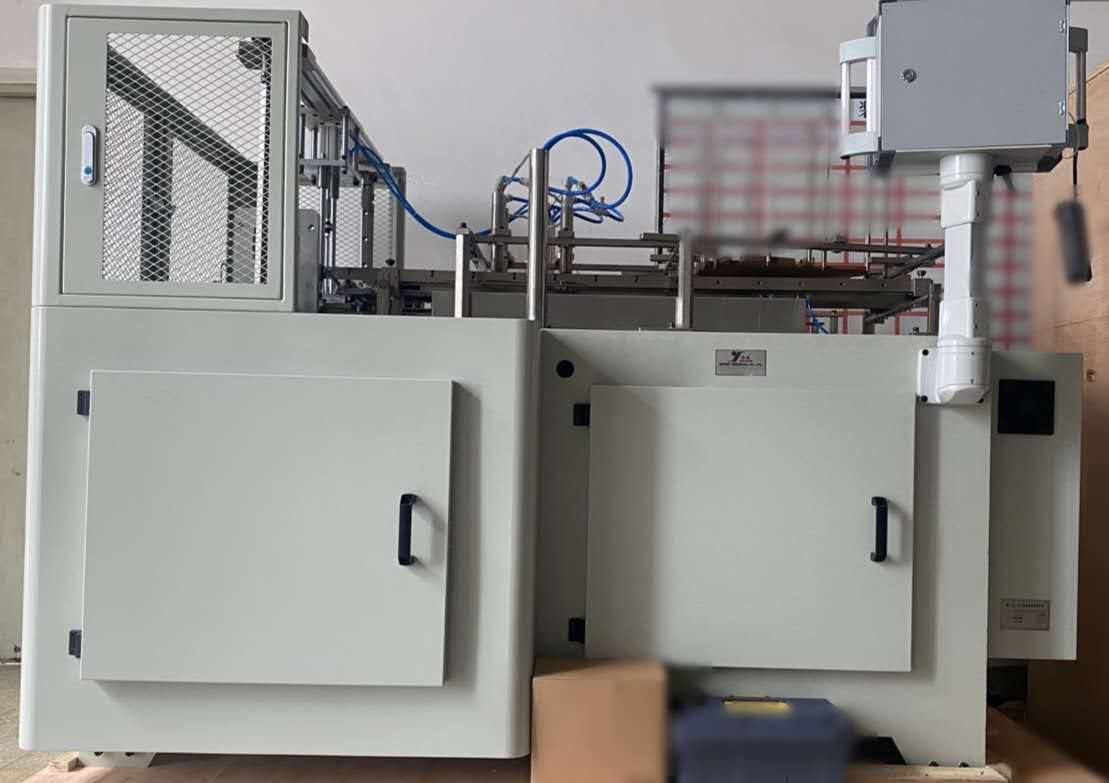

EcooGraphix Single/Double PE Coated Paper Lunch Box Forming Machine
☞☛☞ Introductions
Ecoo lunch box forming machine is designed according to European
industrial standard. Initially developed in China, the products
developed in China, the products have achieved the CE certification
and have been sold to many countries in the world. With high
quality and efficiency, it is an ideal choice for you to produce single PE coated or double PE coated paper lunch box. We adopt ceramic hot air to sealing the box corner on this kind
of machine.
☞☛☞ Specifictions
Lunch Box Forming Machine
Model ECOO-LH450A
Machine Size 2.3x1.5x1.7(m)
Power Supply 380V/50HZ
Material 200-600gsm one side or double side PE coating paperboard
Air Supply 0.6MPa
Total Power 5.5kw
Max. Speed ≤ 60pcs/min
Weight About 1Ton
Area 4x3(m)
Blank Length(L) ≥ 200mm ≤ 520mm
Blank Width(B) ≥ 200mm ≤ 500mm
Height of Side Flaps Lid(H) ≥ 45mm ≤ 250mm
Blank Bottom Width(C) ≥ 60mm ≤ 170mm
Blank Bottom Length(D) ≥ 60mm ≤ 220mm
Blank Cover Length(H1) ≥ 50mm ≤ 270mm
|
| Lunch Box Forming Machine |
| Model | Ecoo-LH450A |
| Machine size | 2.3x1.5x1.7(m) |
| Power supply | 380V/50HZ |
| Material | 200-600gsm one side or double side PE coating paperboard |
| Air supply | 0.6MPa |
| Total power | 5.5kw |
| Max. speed | ≤ 60pcs/min |
| Weight | About 1Ton |
| Area | 4x3(m) |
| Blank length(L) | ≥ 200mm ≤ 520mm |
| Blank width(B) | ≥ 200mm ≤ 500mm |
| Height of side flaps lid(H) | ≥ 45mm ≤ 250mm |
| Blank bottom width(C) | ≥ 60mm ≤ 170mm |
| Blank bottom length(D) | ≥ 60mm ≤ 220mm |
| Blank cover length(H1) | ≥ 50mm ≤ 270mm |
☞☛☞ Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
☞☛☞ Certificates
☞☛☞ FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
Q3: What is your warranty for the CTPs ?
A: Three years' Laser Head and main spare parts for the CTPs, one year
for the Processor. If the customer use EcooGraphix CTP plate with the CTP machine, we
will provide the Lifetime Warranty.
Q4: Can you also supply the Workflow and RIP ?
A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.
Q5: What about the installation and after-sales technician support
?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets, service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are
also many end users(printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
These end users printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hassle on installations, training and after sales service. We
guarantee your satisfaction.
