6200PCS/H 1100x1450mm UV Spot And Overall Coating Machine

☼ Introduction

The HIS series of UV local glazing machine adopts the Bite-transferring structure and chain track design of offset printing pree. The drying section is a conveyor net structure, adopts the large diameter impression cylinder, so the finished oil film is very flat and even, accurate and bright. It can comprehensive think about both thick and thin papers, and can be used for both full UV and partial UV coating.

☽ Specifictions

High Speed UV Spot And Overall Coating Machine
Model	ECOO HIS-1100	ECOO HIS-1280	ECOO HIS-1450
Max. sheet size	1100x1100mm	1100x1280mm	1100x1450mm
Min. sheet size	310x406mm	350x460mm	350x460mm
Max. coating size	1090x1090mm	1090x1270mm	1090x1440mm
Sheet thickness	80-600gsm	80-600gsm	128-600gsm
Coating registration accuracy	± 0.2mm	± 0.2mm	± 0.2mm
Production speed	6800 sheets/hour	6500 sheets/hour	6200 sheets/hour
Weight	8500kg	9000kg	9500kg
Dimension	12010x2779x1818mm	12230x2960x1844mm	12230x3100x1844mm
Power	50KW(E) 42KW(W)	54KW(E) 44KW(W)	57KW(E) 47KW(W)
Remark: Production speed depending on sheet weight, size and quality

​

---

☀ Main Features

​

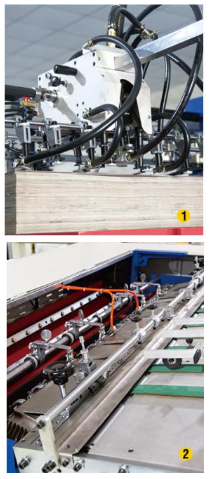

		Feeder Enlarged feeder with four sucking and six forwarding suckers and air blowing for spool can feed sheet easily and smoothly.
		Front Side Lay Gauge When sheet reaches front lay gauge, left and right pulling lay gauge can be used. The machine can stop feeding immediately by sensor without sheet and release pressure to keep bottom roller under no varnish condition.
		Varnish Supply Steel roller and rubber roller with metering roller reversing and doctor blade design control by varnish consumption and volume to meet the demand of products and operate easily. (Varnish consumption and volume are determined by LPI of ceramic anilox roller)
		Transferring Unit After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.

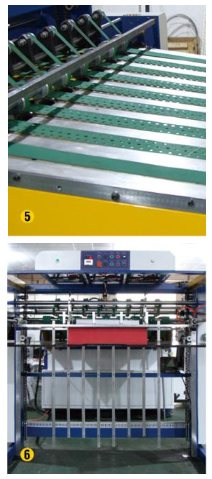

		Conveying Unit Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
		Sheet Delivery Automatic pneumatic patting sheet controlled by photoelectric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.

​

---

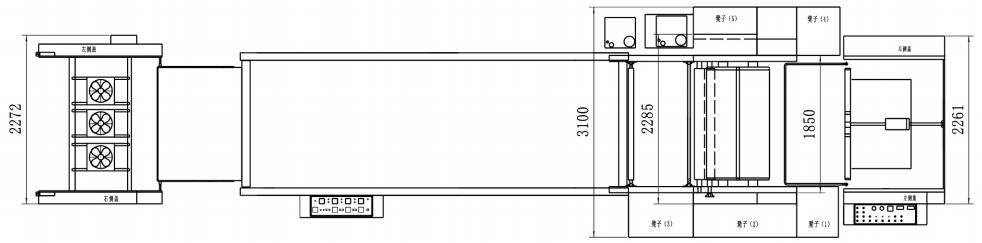

☾ Floor Plan

Standard Equipments: Auto Feeder Multifunctional Coating Unit UV Curing System Auto Delivery Unit Auto Control

Optional Equipments: Non-stop Feeding and Delivery Mechanism Fold the Car Device Ceramic Anilox Roller

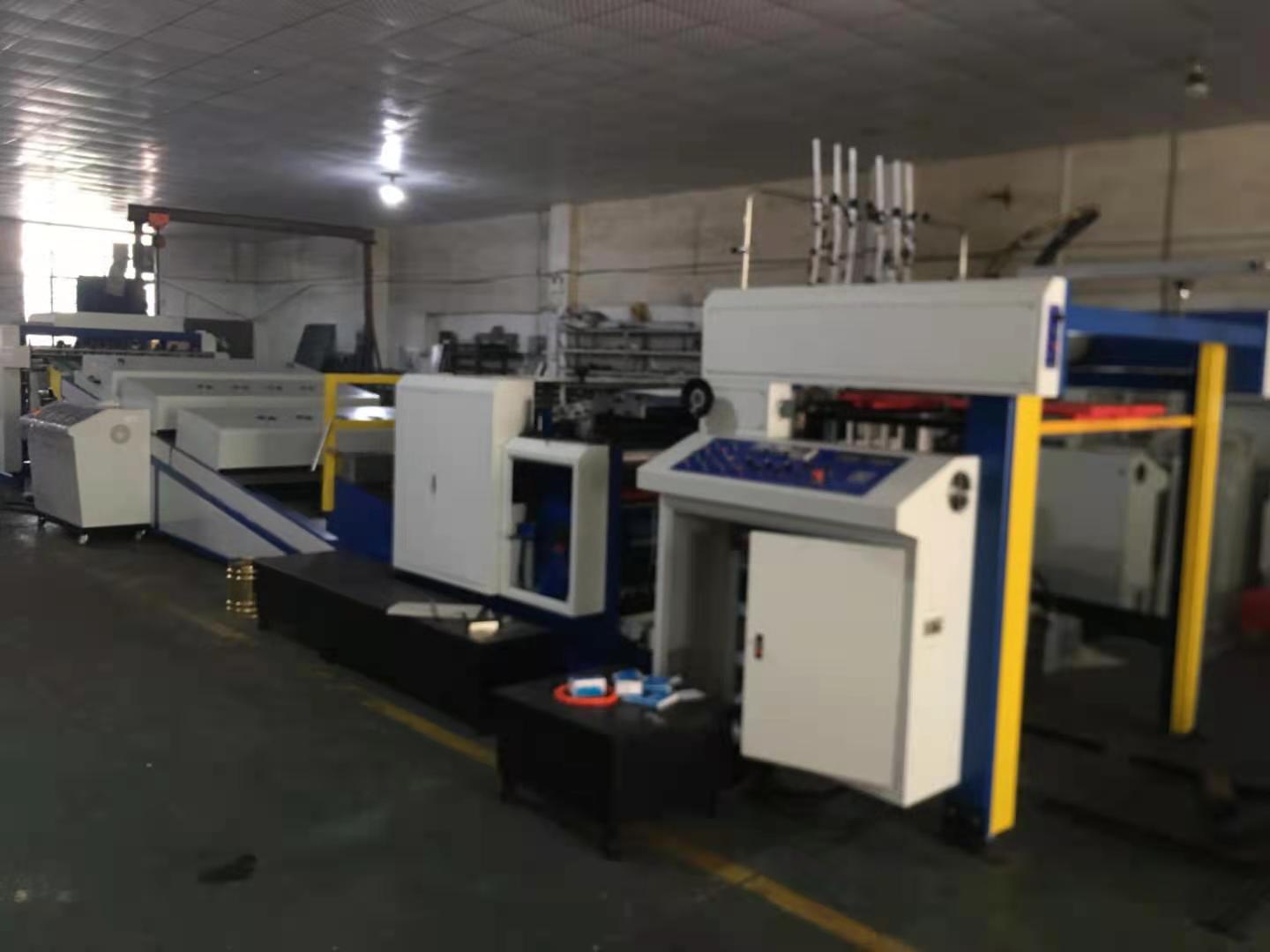

☁ Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

★ Certificates

☆ FAQ

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?

A: Our CTP Processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: What is your warranty for the CTPs ?

A: Three years' Laser Head and main spare parts for the CTPs, one year for the Processor.
If the customer use EcooGraphix CTP plate with the CTP machine, we will provide the Lifetime Warranty.

Q4: Can you also supply the Workflow and RIP ?

A: Yes, we can provide the Workflow Brainnew and RIP Compose V12.

Q5: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
