Flexo UV Printing Inks and Varnish for Label Logo Paper or Plastic
Film
Fast Drying,Environmental Friendly
Features
1 This product mainly includes a general-purpose film label flexo
printing UV/LED ink composed of photo-curable acrylic resin,
initiator, reactive diluent, pigment and additives.
2 This product has the advantages of stable color development, fast
curing speed and low odor.
3 This product has passed SGS and CTI testing, and complies with
American ASTM F963-07, European Union EN71-3, ROHS and other
standards.
Application
Widely used in various papers and films such as PVC PET TPUOPP and
pearlescent film.
Parameter (Led-UV series)
| No | Color | Number | Appearance | Viscosity (CPS/℃) |
| 01 | white | SF-UV5100 | white liquid | 1000 ~ 3000 (customize) |
| 02 | yellow | SF-UV5200 | yellow liquid | 1000 ~ 3000 (customize) |
| 03 | Bright red | SF-UV5300 | red liquid | 1000 ~ 3000 (customize) |
| 04 | blue | SF-UV5400 | blue liquid | 1000 ~ 3000 (customize) |
| 05 | black | SF-UV5800 | black liquid | 1000 ~ 3000 (customize) |
| 06 | golden red | SF-UV5310 | red liquid | 1000 ~ 3000 (customize) |
| 07 | Rhodamine Red | SF-UV5320 | Red liquid | 1000 ~ 3000 (customize) |
| 08 | Orange | SF-UV5500 | Orange liquid | 1000 ~ 3000 (customize) |
| 09 | Green | SF-UV5700 | Green liquid | 1000 ~ 3000 (customize) |
| 10 | Purple | SF-UV5600 | Purple liquid | 1000 ~ 3000 (customize) |
| 11 | Varnish | SF-UV809D | Varnish liquid | 1000 ~ 3000 (customize) |
Technology: Flexo printing machine

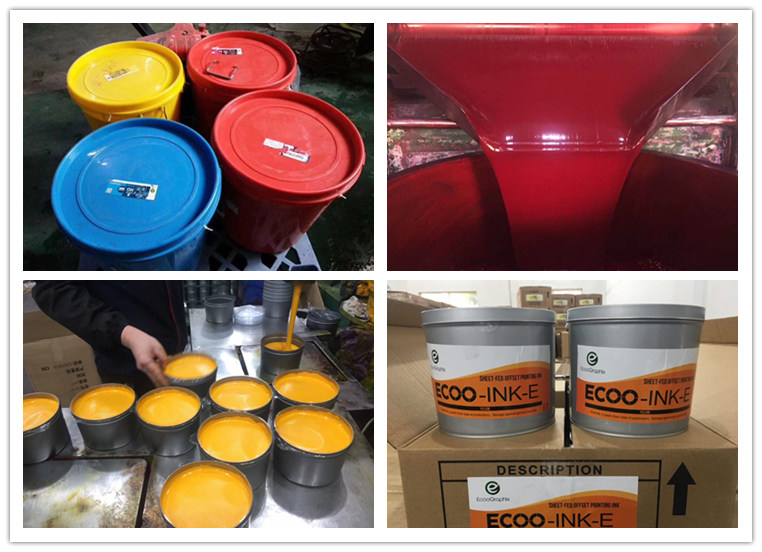

Package and specification: black plastic barrel, net weight 5KG
Storage: avoid light, ventilated and cool place
3. Specification
| Type | ECOO-INK-F |
| Printing speed | 8,000rph-10,000rph |
| Packing | 1 kg/2.5 kg per tin, 12tins/ 6 tins per carton |
| Shelf Life | 3 years (from the production date); product against light and water |
| Appearance | Colored paste |
Application | ECOO-IN-F printing ink is suitable for printing packaging,
advertisement, label, brochures and decorating products on art
paper, coated paper, offset paper, cardboard, etc., especially
suitable for single-color and multi-color printing. |
| ITEM/TYPE | TACK VALUE | FLUIDITY (mm) | PARTICLE SIZE (μm) | SETTING TIME (min) | DRYING TIME (hr) | SKINNING TIME (hr) |
| YELLOW | 6-7 | 35±1
| 15 | 4 | < 10 | >15 |
| MAGENTA | 5.5-6.5 | 34±1
| 15 | 4 | < 10 | >15 |
| CYAN | 6.5-7.5 | 35±1
| 15 | 4 | < 10 | >15 |
F BLACK | 7-8 | 35±1
| 15 | 4 | < 10 | >15 |
| Tack Value | The value is measured in 1 minute by inkometer at 32℃ and 400rpm. |
| Set Time | Printing adapter, 157g art paper, the volume of ink-coating can be
up to 0.125cc |
| Condition of test | Room temperature 25℃, humidity 65%-75% |
| ITEM/TYPE | Light Resistance | Heat Resistance | Acid Resistance | Alkaline Resistance | Alcohol Resistance | Soap Resistance |
F YELLOW | 4 | 5 | 5 | 4 | 4 | 4 |
F MAGENTA | 3 | 5 | 5 | 5 | 4 | 5 |
F CYAN | 7 | 5 | 5 | 5 | 5 | 5 |
F BLACK | 7 | 5 | 5 | 5 | 5 | 5 |
| Light Fastness | 1-8 (weak-strong) |
| Others | 1-5 (weak-strong) |
4. Composition and related information
Hazards identification
· General information: This product is not dangerous.
· Hazard description: Not applicable.
· Information concerning particular hazards for human and environment:
The product has to be labelled due to the calculation procedure of the "General Classification guideline for
chemicals of 67/548/EEC and 1999/45/EC" as well as 1272/2008/EC in the latest valid version.
· Classification system:
The classification is according to the latest editions of the EU-lists, and extended by company and literature
data.
· GHS label elements:
Not applicable
FAQ:
1. What are your main products ?
EcooGraphix is a leading and professional Supplier for Prepress
Solution , Printing Materials and Post Packing Equipment.
Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP , CTCP , VLF CTP and CTCP, Flexo CTP , Processor ,
Offset Plates ,Printing inks ,Printing blankets , postpress Packing
equipments and so on.
Our partners in USA,Canada,Mexico,Colombia,Turkey,Hungary,South
Africa and so on are very pleased with our Technician Support
service and product performance.
You can get the prepress equipment and consumables all in one and
no worry about the after-sales service from our company.
