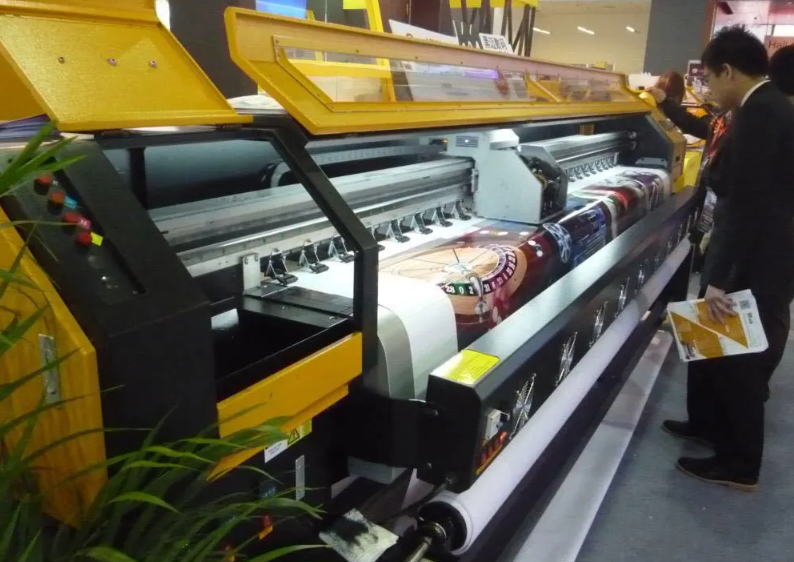

Dual Epson Dx5 Print Heads 45 Sqm/H Digital Textile Sublimation Printer
●●○ Features ○●●
1) Thicker and wider rack, printer working more stable
2) Updated paper roller, pinch roller to reduce media feeding
bulging, and more high precision media feeding
3) Updated print head maintenance system to reduce print head may
clog
4) Updated printer platform, higher printing resolution
5) More scientific drive line system
6) Longer service life
7) Support batch production by take-up and feeding system
●●○ Specifications ○●●
ECOO High-resolution Printer Machine
Model
E-Jet V21
Resolution & Speed
High quality model (6 pass): 1800 x 720dpi, 30m²/hr;
Production model (4 pass): 1200 x 720dpi, 45m²/hr;
High speed model (2 pass): 600x 720dpi, 95m²/hr
Media Transfer
Auto taking-up media device
Feeding Syetem
Release media without motor, taking material with motor and tension
system
Inks
4 colors or 6 colors, apply for eco-solvent, water-base and dye
sublimation ink
Rip
MainTop, Seeget, PhotoPrint
Format Dimension
3000L x 800W x 1460H (mm)
Print Head
Dual EPSON DX5 print heads;
Minimum 3.5 pl variable ink-drop;
Auto suck ink, ink suck protect system
Media
Modalities: Roll to roll media;
Specifications: Max. width 1.8 meters, unlimited length;
Classifications: Banner, Sublimation Paper, PE, PP, ABS, PU, Vinyl
Print Format
PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK)
Power Supply
210-230V, 50/60HZ, 16A Print Power: 1000W; Dryer Power: Max. 3500W
Environment Power
Temperature: 18-30ºC
Humidity: 35-70%RH
Gross power: 3.6KW
Weight
289KG
| ECOO High-resolution Printer Machine |
| Model | E-Jet V21 |
| Resolution & Speed | High quality model (6 pass): 1800 x 720dpi, 30m²/hr;
Production model (4 pass): 1200 x 720dpi, 45m²/hr;
High speed model (2 pass): 600x 720dpi, 95m²/hr |
| Media Transfer | Auto Taking-Up Media Device |
| Feeding Syetem | Release media without motor, taking material with motor and tension
system |
| Inks | 4 colors or 6 colors, apply for eco-solvent, water-base and dye sublimation ink |
| Rip | MainTop, Seeget, PhotoPrint |
| Format Dimension | 3000L x 800W x 1460H (mm) |
| Print Head | Dual EPSON DX5 print heads;
Minimum 3.5 pl variable ink-drop;
Auto suck ink, ink suck protect system |
| Media | Modalities: Roll to roll media;
Specifications: Max. width 1.8 meters, unlimited length;
Classifications: Banner, Sublimation Paper, PE, PP, ABS, PU, Vinyl |
| Print Format | PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK) |
| Power Supply | 210-230V, 50/60HZ, 16A Print Power: 1000W; Dryer Power: Max. 3500W |
| Environment Power | Temperature: 18-30ºC
Humidity: 35-70%RH
Gross power: 3.6KW |
| Weight | 289KG |

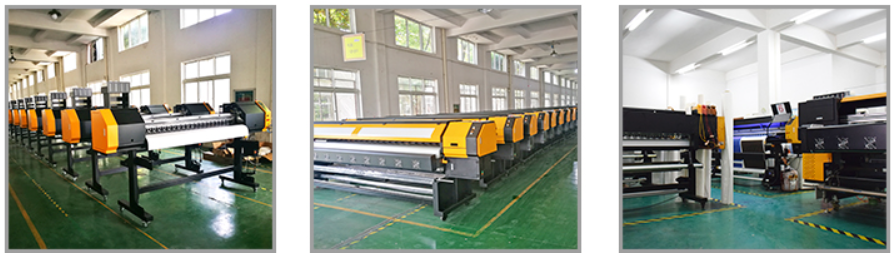

●●○ Producing And Packaging ○●●
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
●●○ Certificates ○●●
