4PCS Digital Label Die Cutting And Slitting Machine

    Buy cheap 4PCS Digital Label Die Cutting And Slitting Machine from wholesalers

    Buy cheap 4PCS Digital Label Die Cutting And Slitting Machine from wholesalers
    • Buy cheap 4PCS Digital Label Die Cutting And Slitting Machine from wholesalers

    4PCS Digital Label Die Cutting And Slitting Machine

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO-VD3350
    Certification : ISO9000, CE
    Payment Terms : L/C, T/T
    Supply Ability : 500 Sets/Year
    Delivery Time : 45 Days
    Price : Negotiable
    • Product Details
    • Company Profile

    4PCS Digital Label Die Cutting And Slitting Machine

    4PCS Digital Label Die Cutting And Slitting Machine


    . Specifictions

    Digital Label Die Cutting Machine

    Model
    ECOO-VD3350


    Max. media roller
    Diameter 450mm


    Cutting media width
    40-350mm


    Max. label width
    330mm


    Min. label length
    10mm


    Max. label length
    600mm


    Cutting speed
    Max. 9m per minute (Depend on label shape and size)


    Cutting blades
    (Standard) 4 pcs


    Slitting blades
    (Standard 4 pcs) Max. 15pcs


    Cutting tracking
    CCD camera


    Die-cutting technology
    With tungsten steel rotary blades


    Cutting precision
    0.1mm (Duplicate)


    Slitting speed
    Max. 100m per minute


    Slitting width
    10-330mm


    Slitting precision
    0.1mm


    Machine size(W*D*H)
    2100*1195*1575CM


    Machine weight
    1200kg


    Power
    110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS


    Warranty
    1 year (Besides high consumable parts)


    Options
    Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter


    Digital Label Die Cutting Machine
    ModelECOO-VD3350
    Max. media rollerDiameter 450mm
    Cutting media width40-350mm
    Max. label width330mm
    Min. label length10mm
    Max. label length600mm
    Cutting speedMax. 9m per minute (Depend on label shape and size)
    Cutting blades(Standard) 4 pcs
    Slitting blades(Standard 4 pcs) Max. 15pcs
    Cutting trackingCCD camera
    Die-cutting technologyWith tungsten steel rotary blades
    Cutting precision0.1mm (Duplicate)
    Slitting speedMax. 100m per minute
    Slitting width10-330mm
    Slitting precision0.1mm
    Machine size(W*D*H)2100*1195*1575CM
    Machine weight1200kg
    Power110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS
    Warranty1 year (Besides high consumable parts)
    Options

    Cutting head/ Slitting unit/ Film back liner removal/

    Sheet paper cutter

    4PCS Digital Label Die Cutting And Slitting Machine4PCS Digital Label Die Cutting And Slitting Machine4PCS Digital Label Die Cutting And Slitting Machine4PCS Digital Label Die Cutting And Slitting Machine

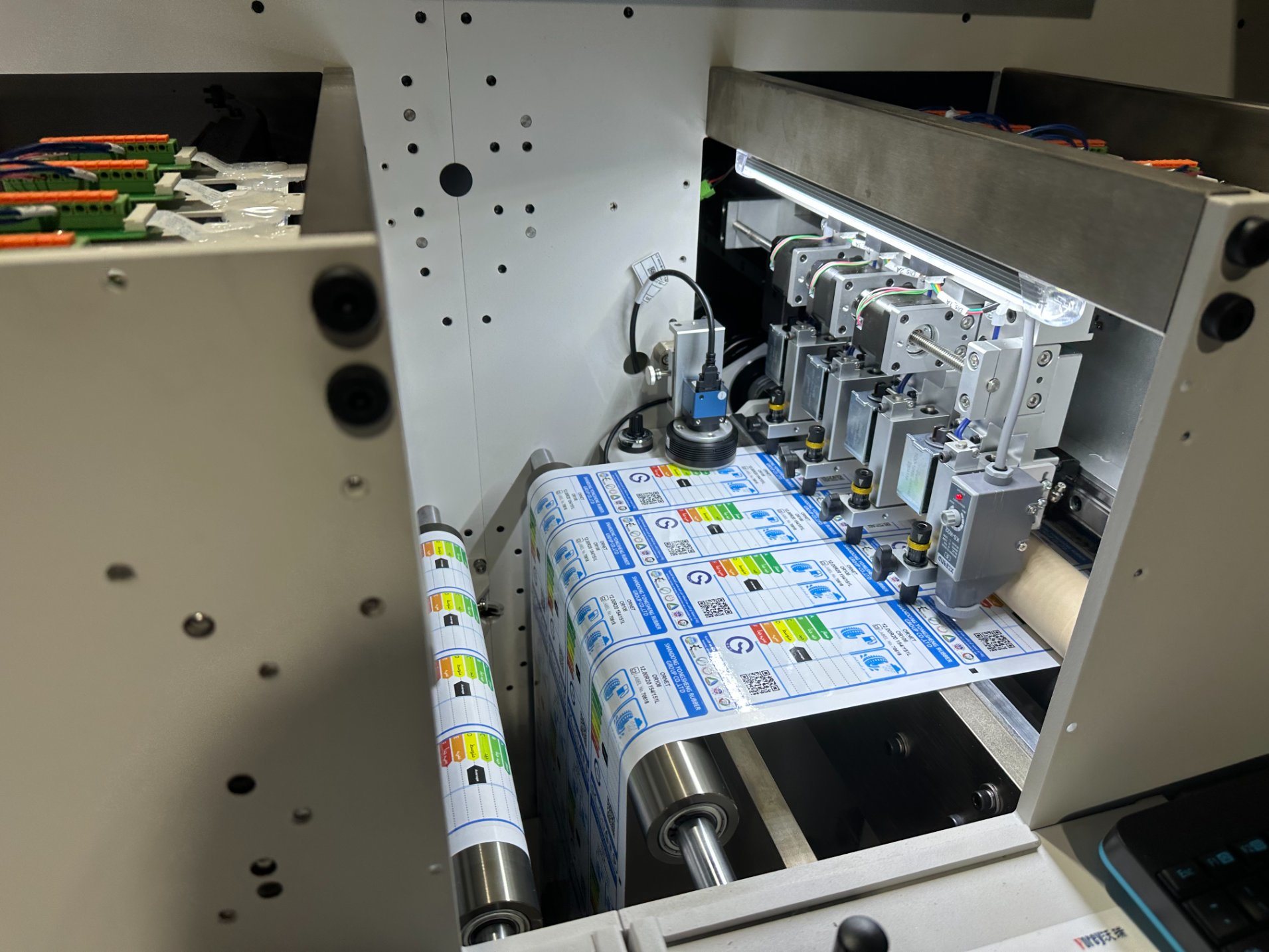

    . Introduction
    The VD3350 high-speed digital label machine, which incorporates more A intelligent elements, adopts a unit design and can install up to 3 working units. Unique intelligent digital die-cutting software that automatically recognizes and extracts cutting files, and automatically adjusts tool spacing. Use a four blade*3 unit to work on different labels simultaneously. With the latest intelligent software, automated die-cutting runs through the entire workflow, making equipment operation easier than ever, greatly improving work efficiency while reducing manual intervention.

    . Producing And Packaging


    From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.








    . Certificates




    . FAQ


    Q1: What are your main products ?

    A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

    You can get the equipment and consumables all in one and no worry about the after-sales service from our company.



    Q2: Where is your factory ?

    A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!



    Q3: How long is the lead time ?

    A: The lead time is normally 30 days. We can accelerate for emergency cases.



    Q4: Is there any certification for your machine ?

    A: Yes, all our machines have been certified by SGS and CE.



    Q5: How long is the warranty period ?

    A: EcooGraphix guarantees 1 year of warranty.



    Q6: What is your normal payment term ?

    A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.


    Q7: What about the installation and after-sales technician support ?

    A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.


    These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
