Thermal Positive CTP Plate Offset Printing Plate For High Commercial Printing
1. Characteristic
High quality aluminum, composite grain and high press runs.
Capable of bright room operation.
High resolution and precise half tone dot reproduction.
High development tolerance level and convenient operation.
2. Specification
Model
ECOO-ES
Plate Type
Thermal CTP Plate
Application
High grade commercial and newspaper printing
Substrate
Electro chemically grained and Anodized lithographic aluminum
Gauage
0.15, 0.20, 0.25, 0.30, 0.40 mm
Maximum short grain width
Maximum width 1,280 mm
Coating
Single-layer system, IR sensitive, Positive acting
Length of Run
Unbaked: 80,000 to 100,000 impressions;
Baked: Over 100,000 impressions
Plate setters
All thermal CTP machine
Aluminum
Standard 1,050 alloy
Exposure energy
90 - 120 mj/cm²
Developing time
5 - 30 sec
Spectral Sensitivity
800 - 850 nm - Peaks 830nm
Resolution
1 - 99% @ 300LPI
Image Color
Blue
Developer
Kodak Gold Star or our own developer
Processing temperature
23ºC +/- 2ºC
Processing Speed
0.80 - 1.20 m/min
Safelight
Daylight handling
Shelf life
12 months under recommended storage conditions
Packaging
Available in all standard formats, including bulk packaging options
such as APL packaging
Storage and handing
Stored in a cool and dry environment, away from excessive cold,
heat and humidity
| Model | ECOO-ES |
| Plate Type | Thermal CTP Plate |
| Application | High grade commercial and newspaper printing |
| Substrate | Electro chemically grained and Anodized lithographic aluminum |
| Gauage | 0.15, 0.20, 0.25, 0.30, 0.40 mm |
| Maximum short grain width | Maximum width 1,280 mm |
| Coating | Single-layer system, IR sensitive, Positive acting |
| Length of Run | Unbaked: 80,000 to 100,000 impressions;
Baked: Over 100,000 impressions |
| Plate setters | All thermal CTP machine |
| Aluminum | Standard 1,050 Alloy |
| Exposure energy | 90 - 120 mj/cm² |
| Developing time | 25 - 30 sec |
| Spectral Sensitivity | 800 - 850 nm - Peaks 830nm |
| Resolution | 1 - 99% @ 300LPI |
| Image Color | Blue |
| Developer | Kodak Gold Star or our own developer |
| Processing temperature | 23ºC +/- 2ºC |
| Processing Speed | 0.80 - 1.20 m/min |
| Safelight | Daylight handling |
| Shelf life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options such as APL packaging |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold, heat and humidity |
3. Application
EcooGraphix Thermal CTP Plate(Single Layer) is able to meet various requirements of high grade commercial and newspaper printing. It has the advantages of fast plate making speed, high tolerance level, precise half-tone dot reproduction, good
ink balance and high press run length.
4. Customer's Feedback

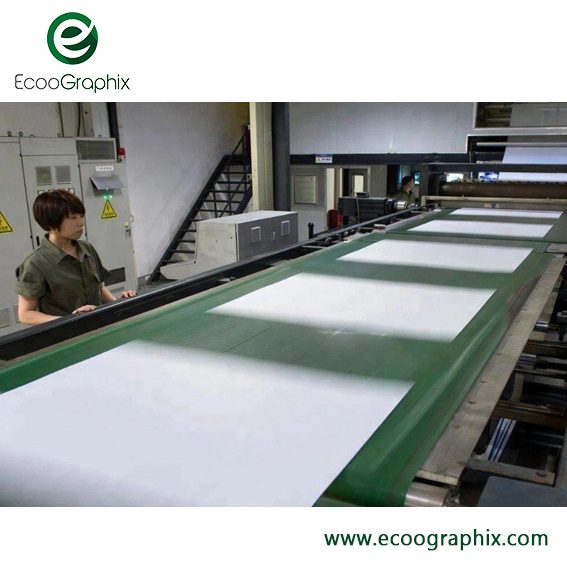

5. Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
7. Certificates
8. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15 pieces plates for free, but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the pick-up service from
your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20,000-25,000sqm.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
