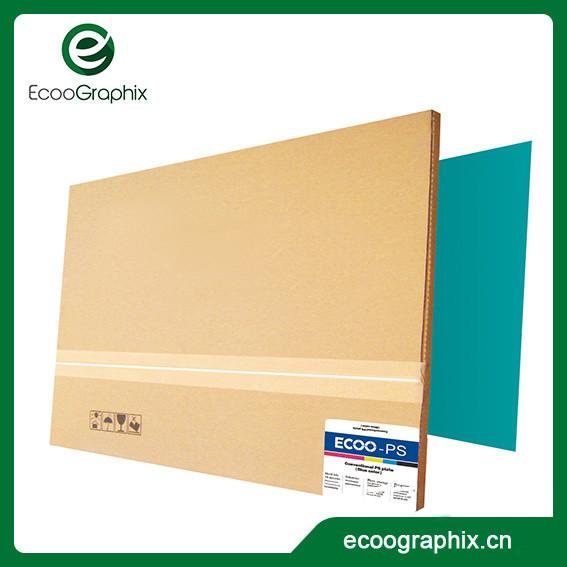

Long Run Positive PS CTP Plate For Offset Printing
1. Characteristic
1) Uniform surface coating and high photosensitive speed.
2) High resolution and higher press run.
3) Precise half-tone dot reproduction.
4) Faster exposure and good stability.
2. Specification
Model
ECOO-PS
Plate Type
Positive PS Plate
Application
Commercial and newspaper printing
Substrate
Electro chemically grained and Anodized lithographic aluminum
Gauge
0.15, 0.20, 0.25, 0.30, 0.40 mm
Maximum short grain width
Maximum width 1,280 mm
Power of light
3,000 - 5,000 w
Length of Run
Unbaked: 50,000 to 100,000 impressions;
Baked: Over 100,000 impressions
(dependent upon image resolution, press, press chemical, ink and
paper conditions).
Processor
All brands or Manual
Aluminum
Standard 1,050 Alloy
Developing time
20-30 sec
Spectral Sensitivity
320-405 nm
Resolution
1-99% @ 300LPI
Image Color
Green
Developer
Any positive plate developer or our own developer
Processing temperature
20-25ºC
Processing Speed
0.80-1.20 m/min
Safelight
Handle under yellow safe light(UV free)
Shelf life
12 months under recommended storage conditions
Packaging
Available in all standard formats, including bulk packaging options
such as APL packaging
Storage and handing
Stored in a cool and dry environment, away from excessive cold,
heat and humidity
| Model | ECOO-PS |
| Plate Type | Positive PS Plate |
| Application | Commercial and newspaper printing |
| Substrate | Electro chemically grained and Anodized lithographic aluminum |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40 mm |
| Maximum short grain width | Maximum width 1,280 mm |
| Power of light | 3,000-5,000 w |
| Length of Run | Unbaked: 50,000 to 100,000 impressions;
Baked: Over 100,000 impressions(dependent upon image resolution,
press, press chemical, ink and paper conditions). |
| Processor | All brands or Manual |
| Aluminum | Standard 1,050 Alloy |
| Developing time | 20-30 sec |
| Spectral Sensitivity | 320-405 nm |
| Resolution | 1-99% @ 300LPI |
| Image Color | Green |
| Developer | Any positive plate developer or our own developer |
| Processing temperature | 20-25ºC |
| Processing Speed | 0.80 - 1.20 m/min |
| Safelight | Handle under yellow safe light(UV free) |
| Shelf life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging options
such as APL packaging |
| Storage and handing | Stored in a cool and dry environment, away from excessive cold,
heat and humidity |
3. Application
EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing. Unique production technology and high quality raw materials make
the plate gain high photosensitive speed, good half-tone dot
reproduction and stable performance.
4. Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
5. Certificates
6. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15 pieces plates for free, but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the pick-up service from
your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many square meters CTP plates can feed one 20' container ?
A: About 20,000-25,000sqm.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer's brand and label.
