Dia 450mm Label Die Cutting Machine 100M/Min Slitting

Ask Lasest Price
Brand Name :	EcooGraphix
Model Number :	ECOO-VD320
Certification :	ISO9000, CE
Payment Terms :	L/C, T/T
Supply Ability :	500 Sets/Year
Delivery Time :	45 Days
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Dia 450mm Label Die Cutting Machine 100M/Min Slitting

High Precision High Speed Digital Label Die Cutter

►. Introduction

The traditional label finisher not only designs are complex and price is very expensive, but also functions are lack.

Now, EcooGraphix research and develop high-speed, easy to operate and multifunctional VD320 digital label die-cutter system.

The high reliable and professional new model digital label die-cutter are designed for professional label printing company.

VD320 digital label die-cutter system is collected laminating, die-cutting, slitting and rewinding on one, it is the best solution for label finishing system.

►. Specifictions

Digital Die Cutting Machine

Model

ECOO-VD320

Max. Media Roller

Diameter 450mm

Cutting Media Width

40-340mm

Max. Label Width

310mm

Min. Label Length

10mm

Max. Label Length

400mm(segmentation get to 1200mm)

Cutting Speed

Max. 6m per minute(depend on label shape and size)

Cutting Blades

(Standard)Max. 4 pcs

Slitting Blades

(Standard)Max. 15 pcs

Cutting Tracking

(Standard)Max. 15pcs with tungsten steel rotary blades

Die-cutting Technology

0.1mm(duplicate)

Cutting Precision

Singe mark or double mark

Slitting Speed

Max. 100m per minute

Slitting Width

10-310mm

Slitting Precision

0.1mm

Machine Size(W*D*H)

160*100*136CM

Machine Weight

520kg

Power

110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS

Warranty

1 year(besides high consumable parts)

Options

Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter

Digital Die Cutting Machine
Model	ECOO-VD320
Max. Media Roller	Diameter 450mm
Cutting Media Width	40-340mm
Max. Label Width	310mm
Min. Label Length	10mm
Max. Label Length	400mm(segmentation get to 1200mm)
Cutting Speed	Max. 6m per minute(depend on label shape and size)
Cutting Blades	(Standard)Max. 4 pcs
Slitting Blades	(Standard)Max. 15 pcs
Cutting Tracking	(Standard)Max. 15 pcs with tungsten steel rotary blades
Die-cutting Technology	0.1mm(duplicate)
Cutting Precision	Singe mark or double mark
Slitting Speed	Max. 100m per minute
Slitting Width	10-310mm
Slitting Precision	0.1mm
*Machine Size(WDH)*	160100136CM
Machine Weight	520kg
Power	110-127VAC 50-60HZ, 1000WATTS/ 220-240VAC 50-60HZ, 1000WATTS
Warranty	1 year(besides high consumable parts)
Options	Cutting head/ Slitting unit/ Film back liner removal/ Sheet paper cutter

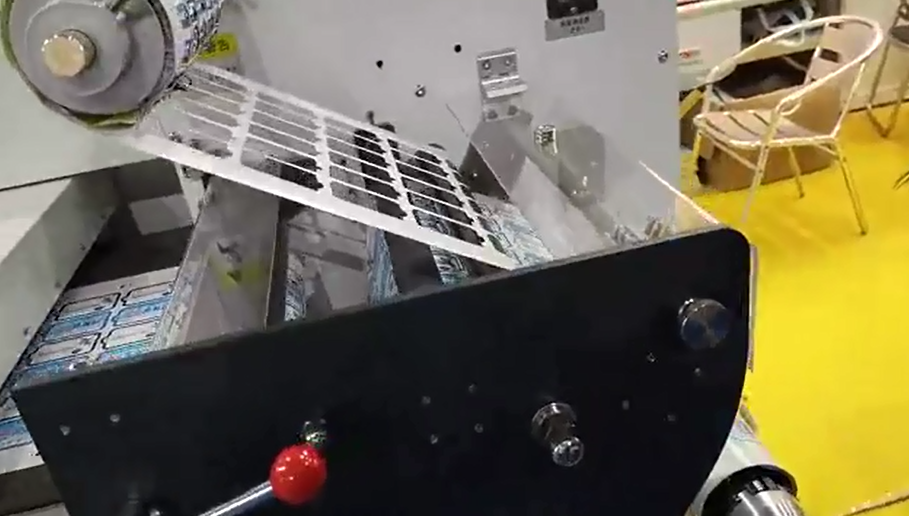

►. Product Detail Presentation

	High precision feeding system Utilize double mark tracking sensors system, guarantee media feeding in regularly. You can choose internal edge and internal line tracking.
	Cold laminating It has cold laminating function, your label will be bright and perfect.
	Digital die-cutting system VD320 Digital label die-cutter utilize Servo motor driving, use tungsten steel blade, the high-speed get to 2meter per second. Design many cutting heads with patents, the cutting thickness get to 1mm, more fast, more reliable and more efficiency.
	Precision slitting system Utilize rotary slitting mode, can install Max. 15 blades, high speed with 60m per minute, instead of traditional slitting.
	The waste removing system The precision machinery design can control the roller.

►. Software Features

• Software can only open PLT format file

• It can choose the knife down point according to shapes

• Trajectory optimization is for perfect cutting

►. Producing And Packaging

From producing to delivery, we make every details very carefully to guarantee the good product quality and service to customers.

►. Certificates

►. FAQ

Q1: What are your main products ?

A: Our main products are the Prepress 4up and 8up Online/Offline Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates, Offset Inks, Offset Printing Blankets, Postpress Packing Equipment and so on.

You can get the equipment and consumables all in one and no worry about the after-sales service from our company.

Q2: Where is your factory ?

A: Our CTP processor machine factory is in Shanghai, you are warmly welcome to visit our factory!

Q3: How long is the lead time ?

A: The lead time is normally 30 days. We can accelerate for emergency cases.

Q4: Is there any certification for your machine ?

A: Yes, all our machines have been certified by SGS and CE.

Q5: How long is the warranty period ?

A: EcooGraphix guarantees 1 year of warranty for laser head and spare parts.

Q6: What is your normal payment term ?

A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.

Q7: What about the installation and after-sales technician support ?

A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets, service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours. Among our large amount of CTP installations worldwide, there are also many end users(printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.

These end users printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hassle on installations, training and after sales service. We guarantee your satisfaction.
