Laminating Tungsten Blade Flatbed Digital Cutter Slitting

    Buy cheap Laminating Tungsten Blade Flatbed Digital Cutter Slitting from wholesalers

    Buy cheap Laminating Tungsten Blade Flatbed Digital Cutter Slitting from wholesalers
    • Buy cheap Laminating Tungsten Blade Flatbed Digital Cutter Slitting from wholesalers

    Laminating Tungsten Blade Flatbed Digital Cutter Slitting

    Ask Lasest Price
    Brand Name : Ecoographix
    Model Number : DLP VD 320
    Certification : ISO9000, ISO20001, CE
    Price : Negotiable
    • Product Details
    • Company Profile

    Laminating Tungsten Blade Flatbed Digital Cutter Slitting

    Ecoo Color DLP VD320 Digital Cutting Machine with Tungsten Steel Blade on 0.1mm label substrate


    Brief introduction

    The traditional label finisher has problems in not only its complex designs and the high price but also the limited and awkard functions, which made end users confortable when make purchase choice. EcooGraphix research and develop high-speed, easy to operate and multifunctional VD320 digital label cutter system. VD320 digital label cutter system bulit laminating, cutting, slitting and rewinding in one model.

    Advantages
    1. digital cutter, fast speed, no need of die making time and cost.
    2. can handle with special, or customized label design.
    3. small format for label material only, compact size and affordable price


    Technical data

    ModelEcoo-VD320
    Max. media rollerdiameter 450mm
    Cutting media width40-340mm
    Max.label width310mm
    Min.label length10mm
    Max.label length400mm (segmentation get to 1200mm)
    Cutting speedmax.6m per minute (depend on label shape and size)
    Cutting blades(Standard) max.4 pcs
    Slitting blades(standard)max.15pcs
    Cutting trackingwith tungsten steel rotary blades
    Die-cutting technology0.1mm (duplicate)
    Cutting precisionsinge mark or double mark
    Slitting speedMax. 100m per minute
    Slitting width10-310mm
    Slitting precision0.1mm
    Machine size (W*D*H)160*100*136CM
    Machine weight520kg
    Power110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS
    Warranty1year (besides high consumable parts)
    OptionsCutting head/Slitting unit/Film back liner removal/Sheet paper cutter

    Please note it is only a supporting label cutting machine which have to work with our VLP LED digital label printing machine. If you have any concern, please feel free to let us know.


    Features and Functions

    High precision feeding system:

    Utilize double mark tracking sensors system, guarantee media feeding in regularly. You can choose internal edge and internal line tracking

    Cold laminating

    It has cold laminating function, your label will be bright and perfect.

    Digital cutting system

    VD320 Digital label die-cutter utilize Servo motor driving, use tungsten steel blade, the high-speed get to 2meter per second. Design many cutting heads with patents, the cutting thickness get to 1mm, more fast, more reliable and more efficiency.

    Precision slitting system

    Utilize rotary slitting mode, can install max.15 blades, high speed with 60m per minute, instead of traditional slitting

    The waste removing system

    The precision machinery design can control the roller

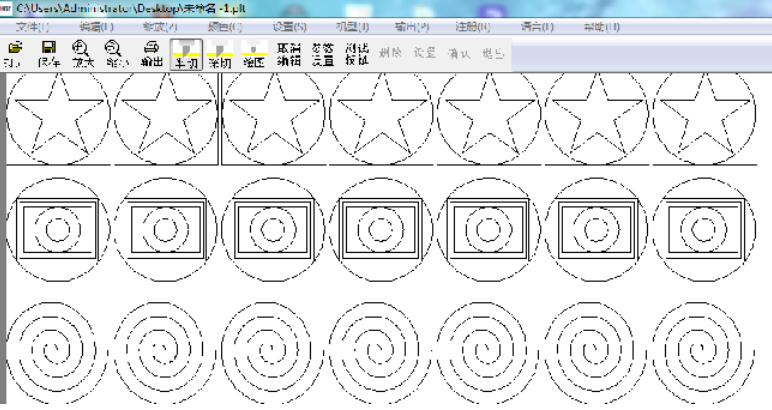

    Software Features:

    • Software can only open PLT format file
    • It can choose the knife down point according to shapes
    • Trajectory optimization is for perfect cutting
