    UV Piezo inkjet label roll embelishment effect enhancement machine

    Ask Lasest Price
    Brand Name : Ecoographix
    Model Number : Ecoospark
    Certification : CE, ISO
    Price : $180000 FOB Shanghai
    Payment Terms : T/T
    Supply Ability : 100 sets per year
    Delivery Time : 55 days
    • Product Details
    • Company Profile

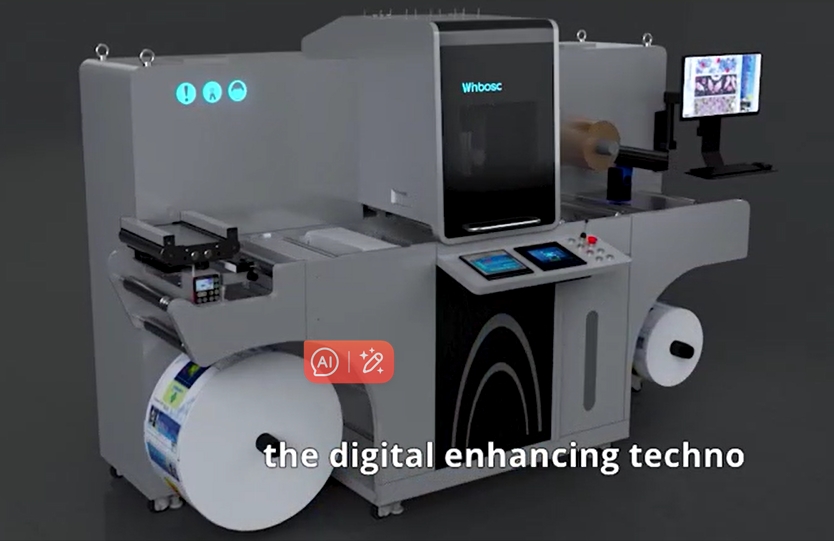

    UV Piezo inkjet label roll embelishment effect enhancement machine

    Machine description

    EcooSpark is a digital UV varnishing and foil stamping machine for label printers, no need for plates, purely digital inkejet printing application. EcooSpark is a pioneer in this segment. If you are in label printing industry or having label printing customers, please pay high attention on this message.


    It uses konita Minolta printing heads (4pcs for 288mm format, 5 pcs for 330mm fromat) and makes effects of 3D shining, varnishing, cold foil stamping, Braille and embossing on the printed label rolls.No need of plate making. Instant achievement of unique visual effect.

    The consumables are digital UV ink and printing heads. The max. speed could be 60 meters per minute.


    Machine parameter

    Printing TechnologyUV Piezo DoD-inkjet
    Resolutionup to 1440*360 dpi
    Printing speed10m/min - 60m/min(depend on polymer layer thickness)
    Variable Image systemPDF, optimized PDF, Optional barcode system
    Supported image standardsPDF,PDF/VT,TIFF, JPEG, BMP & other data base files
    SubstratesOffset, Digital, Plastics, Laminated and coated substrates
    Printing image width280mm (extendable to 320 mm)
    PolymerWB-DS-Clear Polymer
    Polymer layer thicknessFrom 10 up to 180 microns
    Ink curingInter UV-LED Pre-curing/Full curing by UV-LED
    Unwinder diameterMax. 700mm, Core 76mm
    Rewinder diameterMax. 700mm, Core 76mm
    Substrates thickness30-400 micro
    Substrates width330mm

    Press with Foil station

    dimensions (LxHxW)

    3500mmx1900mmx1800mm
    Operating environmentTemperature: 15℃-30℃, Humidity: 40%-80% relative humidity

    Electrical requirements

    Voltage: 3x380, ±5% 3 phases +G+N Frequency: 50/60 Hz

    Current: Avg. 25 Amps in Production

    weight2800kg

    Main function and performance

    3D shining and spot varnishing

    varnish drop on demand, from computer to label digitally and directly.
    Each single pass could allows 10-180 micro varnish coating.
    Embossing

    Using the unique UV inkjet printing technology, the crystal clear polymer varnish is tightly adhered, stable in nature, full in shape, and durable and compliant. Embossed characters and graphics permanetly maintain a clear outline and will not be deformed.
    Cold foil stamping

    Digital cold foil workflow, high precision, less wasteage. Stick the foil on the varnished area. Allow foil stamping on opp/pet film. The same height of foil staping as varnish.
    Braille printing

    The min. varnishing layer could be 10μm by one pass with normal UV varnish.
    The maximum thickness of the varnish layer is 150 μm, by one pass with normal UV varnish. But if customer needs to achieve braille printing, which is common in European society, with special UV varnish, the one pass can make 170μm height and can make two pass to achieve max 350 μm height.

    Features


    Features compared with traditional roller varnish machine
    1) All digital workflow, allows variable data printing and small batch label printing.

    2) No need of plate or mould, from computer to label, instant effect achievement.

    3) Varnish-jet on demand, can make very tiny and accurate and various effect in the same area.

    Features with other digital postpress machine
    1) Automatic printing head cleaning, which is not available in most other plus

    2) Manual registration, which most others do not have

    3) Imported (from UK) mainboard and software, durable and reliable

    4) SGS certified varnish, CE certified machine.

    5)3 years or 5 years warranty policy including the printing heads
