Dots in the Printing Industry
In the printing industry, dots primarily determine hue and
gradation, serving as the foundation for image reproduction and
color accuracy. As the smallest ink-receptive units in offset
printing, dots replicate the hue, gradation, and tonal range of
original designs.
Precise dot control is critical, as variations can affect multiple
print quality parameters, including:
Sharpness and detail reproduction
Gradation smoothness
Hue accuracy
Contrast and tonal balance
Ink density consistency
Black overprint performance
Our advanced dot measurement technology ensures precise plate
inspection and dot quality control. It supports all contemporary
screening technologies, including:
Amplitude Modulation (AM) screening
Frequency Modulation (FM) screening
Specialized screening methods
Hybrid screening technologies
Product Parameters
Our Advantages
1. Android OS with HD 720 Capacitive Touchscreen, Data Storage, and
Wireless Transmission
The device operates on the Android OS, offering a user-friendly
interface and seamless integration with third-party apps and
devices. Its open-source architecture ensures compatibility with
existing workflows and network systems.
Equipped with a 720p HD capacitive touchscreen, the device delivers
crisp visuals and responsive touch control, enabling intuitive
operation for tasks such as menu navigation, settings adjustment,
and image zooming.
Built-in storage capabilities allow for the retention of both
captured images/videos and measurement data, facilitating quality
control, trend analysis, and reporting through historical data
comparison.
Wireless network transmission enables real-time data sharing,
remote access, and cloud integration, streamlining collaborative
workflows across departments or multiple locations.
2. Real-Time HD Shooting of Micro Image Dots for Reveal Reduction
Quality of Dots in Detail
The device enables real-time high-definition imaging of micro-scale
dots, capturing pixel-level details essential for precision
printing and material analysis. Its advanced imaging capabilities
excel at revealing subtle dot structure imperfections - including
misalignment, blurring, and degradation - that critically impact
final product quality.
This detailed defect visualization facilitates immediate issue
identification and correction, significantly enhancing quality
control while minimizing material waste throughout the production
process. The system's precision detection capabilities make it
particularly valuable for applications demanding exacting quality
standards in printed materials and microelectronics manufacturing.
3. Measurement APP Equipped with Advanced Image Processing Technology
for Precise Data, with Eight Measuring Instruments
The integrated measurement app employs cutting-edge image
processing technology to automatically analyze captured images with
exceptional precision. Its sophisticated algorithms enable accurate
detection and measurement of various features including lines,
dots, angles, and areas.
The system incorporates eight specialized measurement instruments
designed for comprehensive analysis. Key capabilities include dot
ratio and screening line evaluation for assessing print quality,
along with precise length, angle, and area measurement tools for
detailed geometric analysis. These functions prove particularly
valuable for quality control in manufacturing and print media
applications, enabling thorough defect detection and process
optimization.
By delivering consistent, reliable, and repeatable results, the app
establishes itself as an essential tool for applications demanding
high levels of accuracy and operational efficiency.
4. Electronic Precise Focusing with Step Motor to Coordinate Lens for
Sharply Clear Focusing
The system utilizes an electronic step motor to achieve precise
focusing, offering superior accuracy and consistency compared to
manual adjustment methods. By moving the lens in minute, controlled
increments, the step motor ensures exact focus alignment—a critical
capability for high-precision micro-imaging applications. This
advanced focusing mechanism delivers exceptionally sharp imaging of
fine details, making it particularly valuable for quality control
processes where microscopic accuracy is paramount.
5. Convenient Data Storage Through Built-In One-Button Shoot
The one-button shoot feature streamlines operation by enabling
simultaneous capture of images and measurement data with minimal
user input. This integrated system automatically saves both visual
and quantitative data in a single step, ensuring efficiency while
eliminating potential data loss - particularly valuable in
fast-paced environments requiring repeated measurements.
The system's precision imaging capability delivers sharp, detailed
results even at microscopic levels, a critical advantage for
quality control applications where accuracy is paramount. This
combination of simplified operation and high-resolution output
makes it ideal for rigorous inspection workflows.

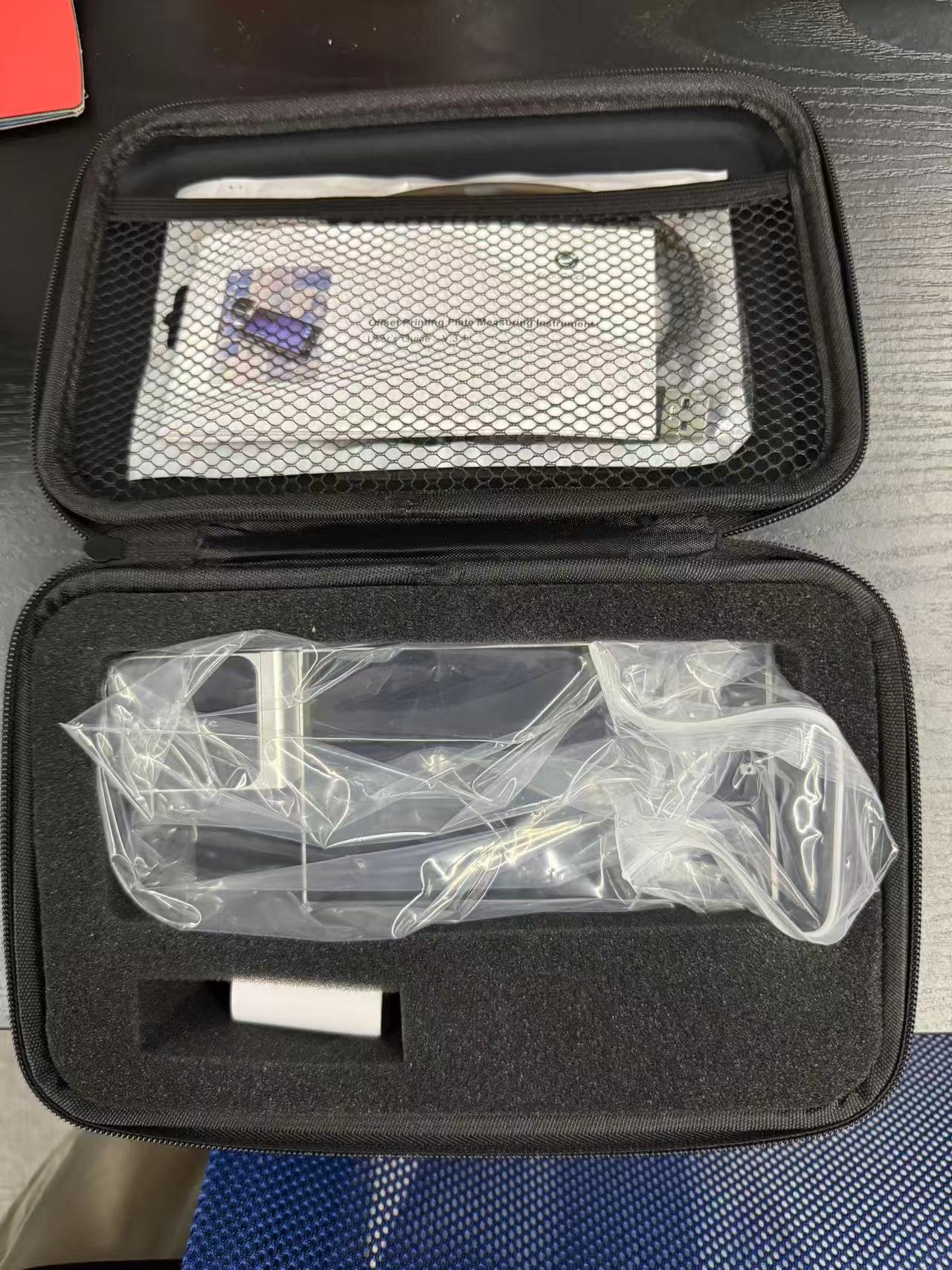

Packaging and Shipping
Certification
FAQ
Lead Time: Standard production requires 30 working days after deposit
confirmation. Expedited options may be available upon request.
Payment Terms: We require a 30% deposit via bank transfer (T/T) to initiate
production, with the remaining 70% balance due prior to shipment.
Alternative payment methods can be discussed for established
partners.
Packaging: Standard shipments use reinforced cartons with ECOO branding, but
we fully accommodate custom packaging requirements (labels, logos,
or specific materials) at no additional cost when specified in
advance.
Shipping Options: Orders ship via FOB Ningbo/Shanghai as standard. We also support
CIF (cost, insurance, and freight) and DDU (delivery duty unpaid)
terms—please indicate your preference when ordering.
Samples: Complimentary test samples (10 plates standard) are available upon
request to evaluate quality and compatibility. Sample lead times
typically match production timelines.
