High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine

    Buy cheap High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine from wholesalers

    Buy cheap High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine from wholesalers
    • Buy cheap High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine from wholesalers

    High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : Ecoo SD-1060W
    Certification : CE
    Price : To Be Negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 200 Sets/Year
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine

    High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine


    (Model: Ecoo SD-1060W)


    High Speed 9500 Sheets/hour UV Spot and Overall Coating Machine
    Product Parameters

    The High Speed UV Spot and Overall Coating machine SD1060W adopts upper-sway gripper-pass-sheet method to enable max speed up to 9500 sheets/hour. UV curing system with Teflon conveying belt has characteristic of higher speed, precise orientation and UV curing higher efficiency and lower power consumption. It is used for both thick and thin papers, and can be used for both full and partial UV varnish coating or water based varnish coating.

    Application Sample:




    Specification

    ModelEcoo SD-1060W
    Max.sheet size730x1060mm
    MIN.sheet size310X406mm
    Max.coating size720x1050mm
    Sheet thickness80-500gsm
    Max Coating Thickness0.025mm
    Coating MediaWater Base Varnish or UV Varnish
    Coating registration accuracy±0.2mm
    Production speed9000 sheets/hour
    Weight8 Ton
    Dimension10460x2725x1930mm
    PowerMax 44KW



    Floor Plan:



    Coating rollers:

    Coating with Anilox Roller


    Coating with Rubber roller



    FAQ

    Q: What about the Installation and after-sales technician support?

    A: Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
    Among our large amount of CTP installations worldwide, there are also many end users (printers) who have purchased the CTP products from EcooGraphix China directly and EcooGraphix technical service team support these installations remotely with regular onsite visits.
    These end users Printers all run the CTP systems with full satisfaction due to our robust quality, seamless remote service, thorough training and maintanence. If you are a printer who is considering purchasing directly from EcooGraphix China, there is no hasle on installations, training and after sales service. We guarantee your satisfaction.

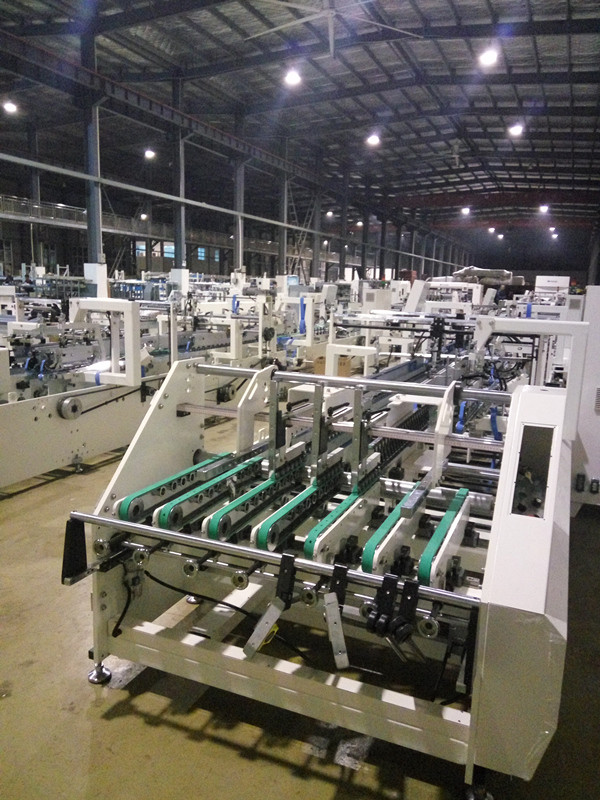

    FACTORY
