Automatic Flat Die Cutting And Creasing Machine For Cardboard
(Model Ecoo-800Q)
Specification
| Automatic Die Cutting Machine |
| Model | Ecoo-800Q |
| Max. Sheet size(mm) | 820 x 620 |
| Min. Sheet size(mm) | 340 x 280 |
| Max. Die cutting size(mm) | 770 x 600 |
| Die chase inner size(mm) | 820 x 628 |
| Cutting plate size | 826 x 628 |
| Min.gripper margin(mm) | 7 |
| Die cutting accuracy(mm) | ≤±0.1 |
| Max.pressure(T) | 200 |
| Max.machine speed(s/h) | 7000 |
| Feeding pile height(mm) | 1150 |
| Delivery pile height(mm) | 1000 |
| Stock range | Cardboard: 0.1~2 mm; corrugated paper: <4 mm |
| Main motor power | 11KW |
| Total power | 16.25kw |
| Dimension(mm) | 5150(+1360) x 1900(+1680) x 1880 |
| Weight(T) | 10 |
Product Description
Features:
1. Complete design, accurate installation, high stability, high
security, low noise.
2. Adopt worm, worm gear, crankshaft transmission, high cutting
pressure, high durability.
3. High precision intermittent mechanism, high cutting precision,
running steadily.
4. Adopt European technology feeder, suction adjustable, steadily,
precise, good paper applicability.
5. Non-stop feeding, pre-stacking and delivery device can shorten
the auxiliary time, improve the efficiency.
6. Automatic pressure adjust system, pressure digital display.
7. Human-friendly designed die frame and baseplate, makes
installation, adjustment convenient.
8. Pneumatic die locking device, die frame fixed more steadily,
accurately, time saving.
9. Front lay, side lay, feeding device fine tuning device, paper
positioning more accurate.
10. Double, crooked, empty optoelectronic position control, ensure
the paper in the right position, reduce waste.
11. Electronic control module design, adopt imported electronic
components, ensure the accuracy and reliability.
12. Touch screen man-machine interface, real-time monitor the
running situation, makes machine adjustment, trouble shooting more
convenient.
13. Cycling cooling oil supply system ensure the movement parts get
adequately lubricated to ensure the durability.
14. Adopt fixed quantity at fixed timing oil supply system, ensure
the movement parts get adequately lubricated to let better
durability.

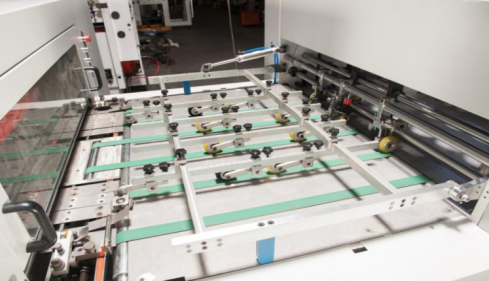

High speed and strength 4-suck-4 forwarder feeder, the angle of the
nozzle can be adjusted according to the paper condition, it ensure
that the thin thick and corrugated paper can be fed smoothly.
Both side blower device, make sure the paper can be separated and
the paper be fed smoothly. Wall plate for feeder is cast iron,
stable and fit for high speed running. Electro mechanical double
sheet detector can reduce the waste. Both side lay can be used both
for pull and push function, equipped with opto-electronic sensor.
The press roller and the brush wheels can be integrated adjusted,
improve the efficiency. Anti-worn PU press roller. Non-stop feeding
device.

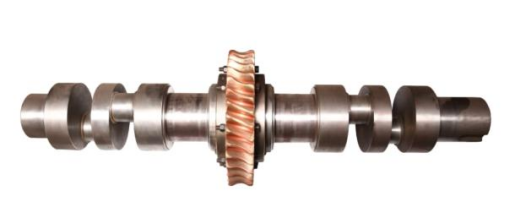

The pressure-bearing parts are high-strength ductile iron QT500,
which has high strength and never deforms. Alloy steel crankshaft
treated with special process.
Super wear-resistant worm gear and worm.
Pneumatic clutch, and imported rotary joint. Oil pressure and air
pressure alarm system, protect the machine. High accuracy cam box,
equipped with synchronized belt and torque overload controller.
Chase detector, increase the running accuracy; pneumatic chase lock
device, electrical pressure adjustment, and convenient chase

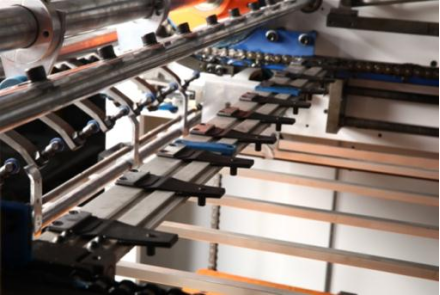

turning device. Hi hardness die cutting plate(HRC50-53). Imported
pre-stretched gripper chain, increase the accuracy and stability,
special side positioning.
The stripping section in combined with upper, middle, lower three
frames. The frames can be pulled out. It makes the adjustment more
convenient and safe. Stripping device can either be stripping pins
or male/female plate.
