    Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard

    Ask Lasest Price
    Brand Name : EcooGraphix
    Model Number : ECOO Coating-760
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200 sets/year
    • Product Details
    • Company Profile

    Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard


    Automatic Spot UV Varnish Coating And Glazing Machine For Paperboard



    (ECOO Coating-760)


    Product Desription



    Brief Introduction:

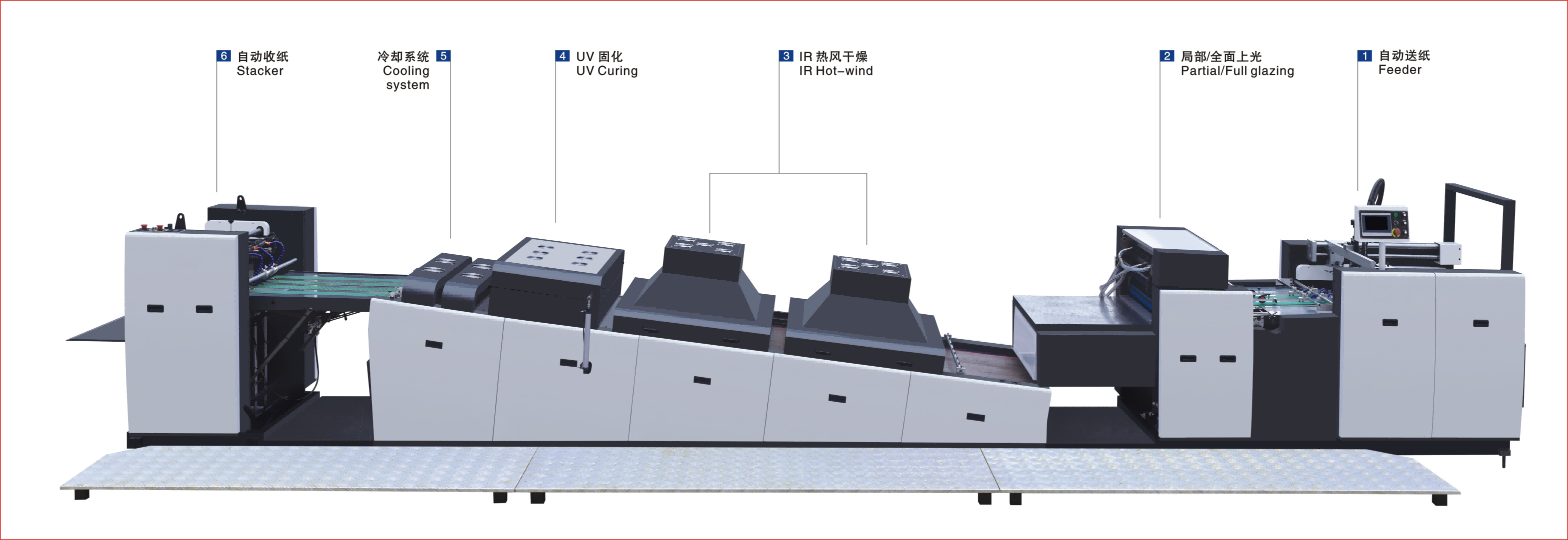

    The spot uv coating machine Ecoo coating-760 is a new coating equipment with excellent performance, which integrates the advanced technologies at home and abroad. It can both spot and overall coating, and has the advantages of high working speed, high gloss, thin and uniform coating layer. It is widely used in packaging decoration, book cover and other printing materials.

    Features:
    The whole machine has a one-key acceleration function. After the main machine accelerates, the oven, paper delivery, feeder, and metering roller will all change according to the speed of the main machine.
    Use metering roller anilox roller to oil and then transfer to blanket.


    Specification



    ModelEcoo coating-760
    Max.sheet size760x595mm
    MIN.sheet size290X270mm
    Sheet weight80-400gsm
    Production speed6000 sheet/h
    Power45kw
    UV lamp3 pcs x 8 kw
    IR lamp18 pcs x 1 kw
    Paper feed heigh1050mm
    Paper stack height920mm
    Weight65000kg
    Dimension9500x2050x2000mm


    Machine Spare Parts




    FAQ



    1. What are your main products?
    We Ecoographix is a specialized supplier of printing machines and consumables. We cover both digital printing and offset printing, including prepress, pressroom and post press, focusing on packaging printing and book printing. We have hundreds of users all over the world. We bring forward top quality of Chinese printing products to meet diversified printing requirements.

    2. Where is your factory?
    Our sale office is in Hangzhou, one hour by train away from Shanghai. Our factories are in Shanghai, Wenzhou, Suzhou and Nanyang.

    3. What is your warranty?
    Normally 1 years.

    4. What is the Lead Time?
    Usually 60 days, and we will try our best to meet your demands.

    5. What about the Installation and after-sales technician support?
    Our engineer can go to help the installation and provide the necessary training. The buyer should take the round air plane tickets and service charge and the local accommodation cost. Any problems or questions,we will be at your disposal 7x24 hours.
