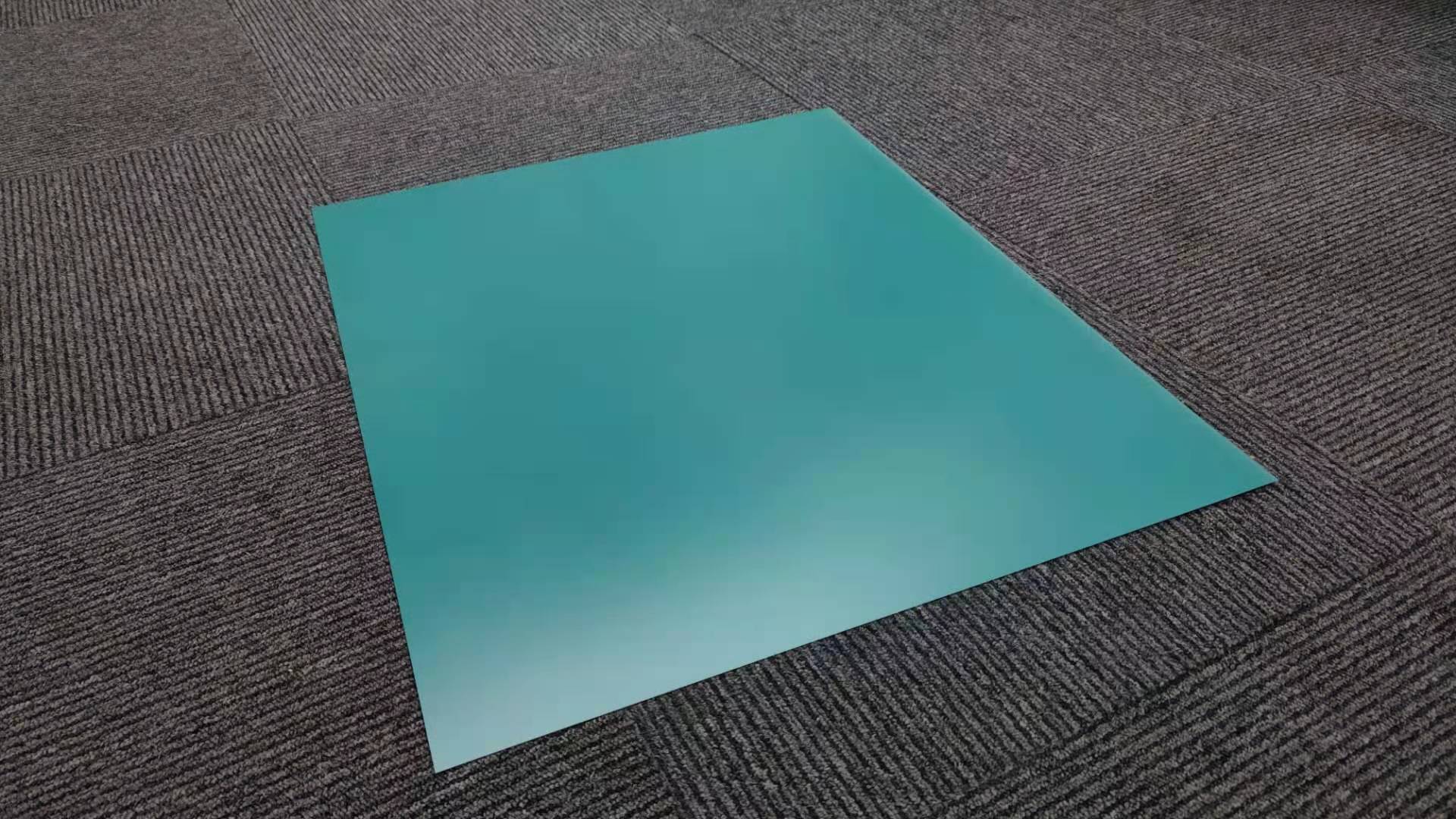

Conventional Aluminum Plate EcooGraphix Positive PS Printing Plate
1. Application
EcooGraphix PS Plate or conventional analog plate can be used for offset/lithographic commercial and newspaper printing. Unique production technology and high quality raw materials make
the plate gain high photosensitive speed, good half-tone dot
reproduction and stable performance.
2. Characteristic
1) Uniform surface coating and high photosensitive speed.
2) High resolution and higher press run.
3) Precise half-tone dot reproduction.
4) Faster exposure and good stability.
3. Specification
| General Information |
| Plate Type | Positive PS Plate/ Conventional Analog Plate |
| Application | Commercial and newspaper printing |
| Substrate | Electro chemically grained and Anodized lithographic aluminum |
| Aluminum alloy | Standard 1050 Alloy |
| Gauge | 0.15, 0.20, 0.25, 0.30, 0.40 mm |
| Maximum short grain width | Maximum width 1280 mm |
| Length of Run | Unbaked: 50000 to 80,000 impressions
Baked: Over 100000 impressions |
| Exposing |
| Power of light | 3000 - 5000 W |
| Exposure energy | 80 - 180 mj/cm² |
| Resolution | 2 - 98% @LPI 200 |
| Photosensitive Wave Length | 320 - 405nm |
| Coating | Blue |
| Developing |
| Processor | All the kind Brands or Manual |
| Developer | Any positive plate developer or our own developer |
| Processing temperature | 20 - 25°C |
| Developing time | 20 - 30 sec |
| Storage And Handling |
| Safelight | Handle under yellow safelight (UV free) |
| Shelf Life | 12 months under recommended storage conditions |
| Packaging | Available in all standard formats, including bulk packaging
options, such as APL packaging |
| Storage and handling | Stored in a cool and dry environment, away from excessive cold,
heat and humidity. |
4. Producing and Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
5. Certificates
6. FAQ
Q1: Can I get the sample ?
A: We are very glad to provide some sample for you to test. We
usually provide 5-15 pieces plates for free, but sincerely hope to
get your kind support for the air courier freight. This cost can be returned to you in your first order.
Q2: What is the cost for the CTP plate sample freight ?
A: The air freight depends on the packing size and weight, and the
delivery destination. Or you can arrange the pick-up service from
your local agent.
Q3: How long can the sample be ready ?
A: It usually takes about 3 days to prepare the sample.
Q4: Can I visit your factory ?
A: You are warmly welcome to visit our factory! Our company is in
Hangzhou city, which is about 1.5 hours by train from Shanghai.
Q5: How many Square Meters CTP plates can feed one 20’ container ?
A: About 20000-25000SQM.
Q6: Can I take my own brand and label on the packing ?
A: Yes, we can provide the OEM with the customer’s brand and label.
