Digital Paper Cutter Die Cutting Machine With Slitting And
Rewinding
Model: ECOO VD320
Product Desciption
Features:
1. High precision feeding system
2. Cold laminating
3. Four heads digital die-cutting system
4. Cutting software
5. Slitting
6. Double receiving
7. Full-cut and half-cut function
The traditional label finishers are complex designed and expensive
with few functions.
Now EcooGraphix researched and developed high-speed, easy to
operate and multifunctional VD320 digital roll to roll rotary label
die-cutter system.
The high reliable and professional new model digital label
die-cutter is developed for work for all kinds of applications.
It can use for short work or big work, can die-cut all of shapes
which you design, delivery time is very fast, it is your best
partner for label printer.
Specification
| Model | Ecoo-VD320 |
| Max. media roller | diameter 450mm |
| Cutting media width | 40-340mm |
| Max.label width | 310mm |
| Min.label length | 10mm |
| Max.label length | 400mm (segmentation get to 1200mm) |
| Cutting speed | max.6m per minute (depend on label shape and size) |
| Cutting blades | (Standard) max.4 pcs |
| Slitting blades | (standard)max.15pcs |
| Cutting tracking | with tungsten steel rotary blades |
| Die-cutting technology | 0.1mm (duplicate) |
| Cutting precision | singe mark or double mark |
| Slitting speed | Max. 100m per minute |
| Slitting width | 10-310mm |
| Slitting precision | 0.1mm |
| Machine size (W*D*H) | 160*100*136CM |
| Machine weight | 520kg |
| Power | 110-127VAC 50-60HZ, 1000WATTS/220-240VAC 50-60HZ, 1000WATTS |
| Warranty | 1year (besides high consumable parts) |
| Options | Cutting head/Slitting unit/Film back liner removal/Sheet paper cutter |
More Details

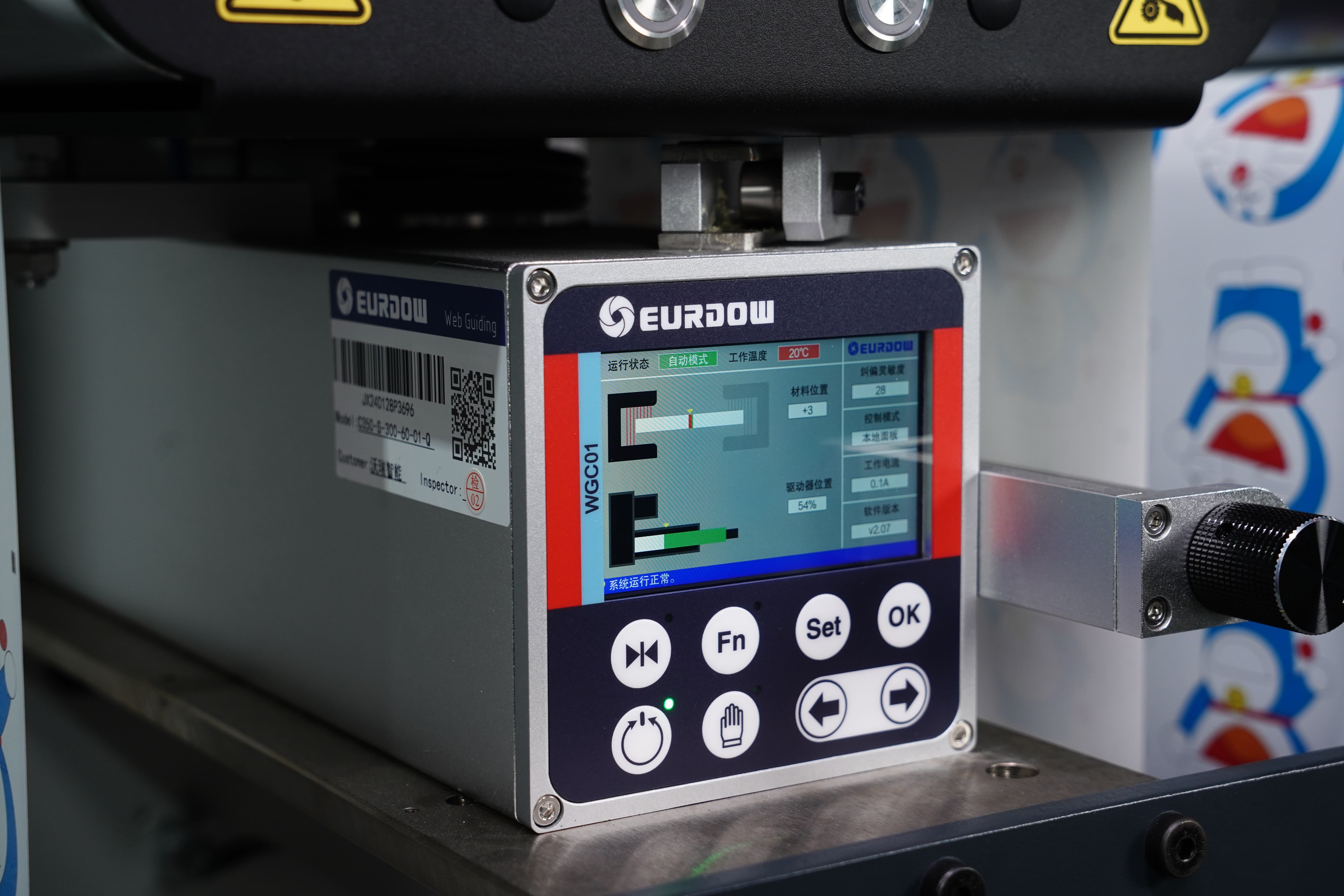

High Precision Feeding System
Utilizing the ultrasonic web-guide system,it makes the feeding
perfectly.
Cold laminating
It has cold laminating function,your label will be bright and
perfect.
Digital Die-cutting System
It adopts full servo drive contrpl,multi-head independent control
design,combined with intelligent software to automatically adjust
the tool pitch,and automatically close or open the head according
to the number of graphics.
Simple operating system
The humanized intelligent operating system,intelligent graphics
processing,path optimization,cutting position selection and
automatic order change system etc which save user's worries.

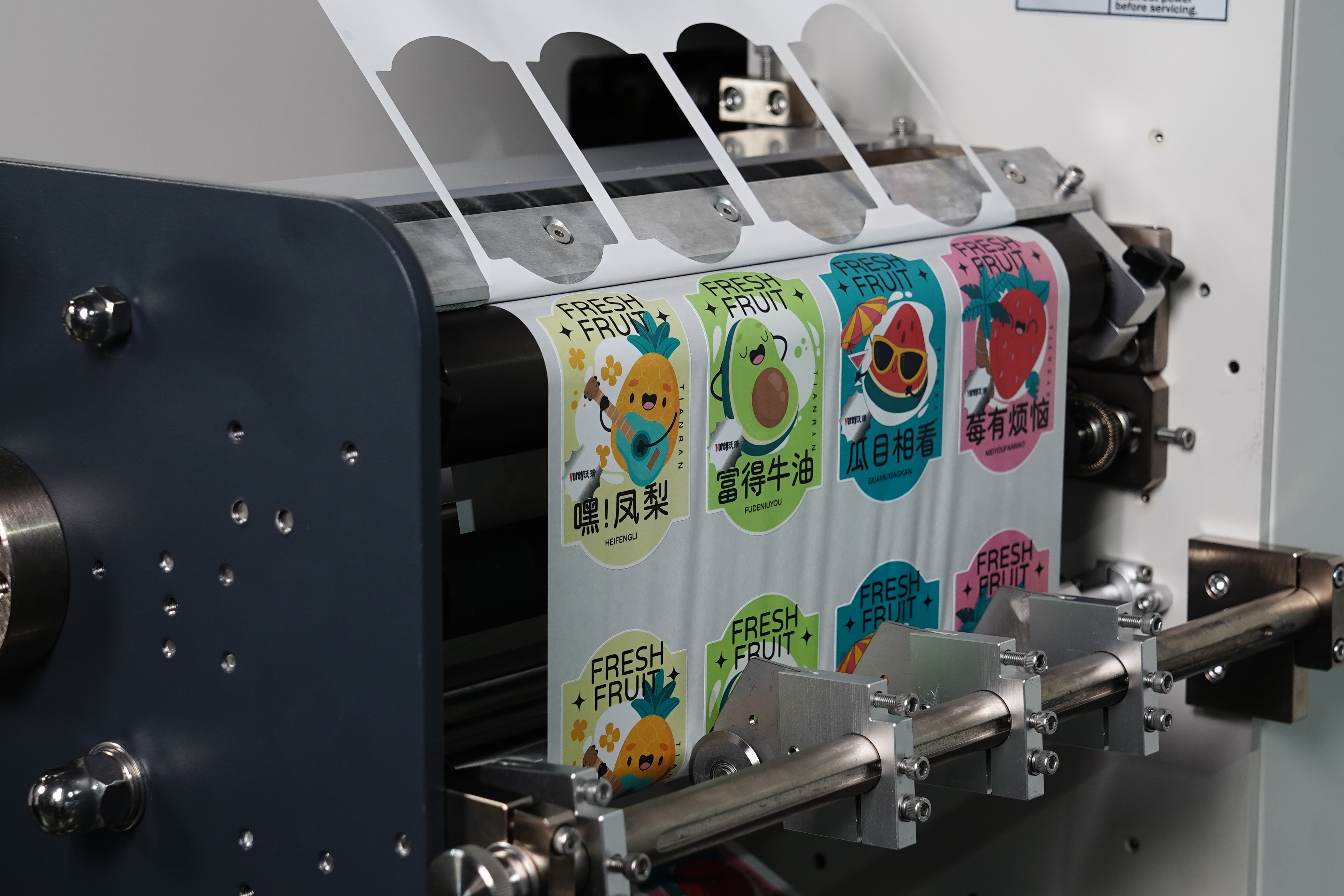

Precision slitting system
Utilizing rotary slitting mode which can stall max.15 blades. High
speed with 100m per minute takes place of traditional slitting
equipment completely.
Double receiving design
Double receiving design makes material receiving work more
efficient.
