    Full Digital And Automatic Inkjet Label Printing Machine

    Ask Lasest Price
    Brand Name : Ecoographix
    Model Number : label smart 330s
    Certification : ISO 9001, CE
    Price : $200000 -$500000 FOB, depends on printing configuration
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets each year
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Full Digital And Automatic Inkjet Label Printing Machine

    Machine brief introduction


    This is a full digital and automatic inkjet lable printing machine with Piezoeletric inkjet printing technology. It is able to handle with max. 330mm format of prining,with optional laminating, flexo unit and inspeciton system. The model uses agfa apogee software workflow to ultimate its color performance.

    Parameter


    ECOO Label Smart Series
    ModelEcoo Label Smart 108SEcoo Label Smart 216SEcoo Label Smart 330S
    Printing TechnologyPiezoelectric Inkjet
    Print MethodRoll to Roll, One -Side
    Color ConfigurationCMYK, CMYK+W, CMYK+W+W
    Number Of Channels6
    Maximum Speed50m/min(600dpix600dpi);25 m/min(600dpix1200dpi)
    Resolution600x600 dpi/600 x1200 dpi
    Ink TypeUV Ink
    Curing MethodUV LED
    Media Width80-330mm80-330mm110-330mm
    Maximum Print Width108mm216mm324mm
    Media Thickness50-400um
    Media TypePET, BOPP, PE, BOPA PP, Coated paper, Synthetic paper, Art paper, etc
    Maximum Media Roll Diameter600 mm
    Power supply380V
    Power15 kW15 kW30kw
    Compressed air>6.5MPa
    Air consumption>10L/min
    Operating environmentTemperature: 20℃-27℃, Humidity: 40%-70% relative humidity
    Skew Adjustment Systemyes
    Electrostatic Dust Removalyes
    Water Cooling Systemyes


    Main section

    • Highly flexible feeding system
    • Stable and high-speed printing unit
    • High quality UV eco-friendly Ink
    • AGFA APOGEE workflow software system
    • Automatic winding and unwinding system
    • Unique print head control system
    • Unique multiple curing technology

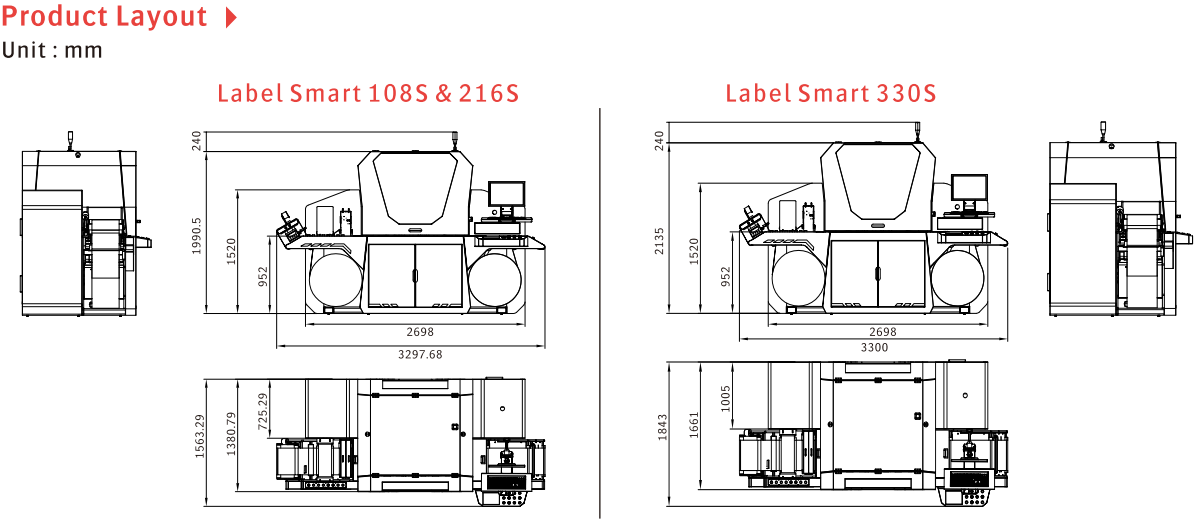

    Layout


    FAQ


    1. what kinds of printing heads do you use?
    Kyocera printing heads. The different printing head will decide the printing speed and resolution.

    2. What is the workflow system?
    The machine is powered by Agfa Apogee software workflow system, which makes it doing well on the color performance.

    3. How about the production time?
    Normally need 60 days to finish.

    4. How about the suitable printing material?
    Compared with other printing method, inkjet printing way has few limitation for printing material. It covers most printing substrates, like PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper. If you have concern, we can sample on your provided printing substrates.
