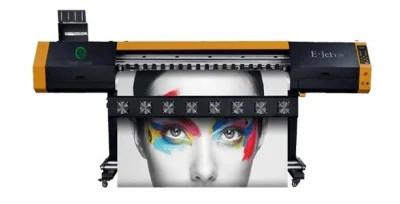

Roll to Roll Sublimation Digital Inkjet Textile Printing Machine
(Model: E-Jet V21)
Product Description
Features:
1) Thicker and wider rack, Printer working more stable
2) Updated paper roller, pinch roller to reduce media feeding
bulging, and more high precision media feeding
3) Updated print head maintenance system to reduce print head may
clog
4) Updated printer platform, higher printing resolution
5) More scientific drive line system
6) Longer Service life
7) Support batch production by take-up and feeding system
Application:
Speccification
| Model | E-jet V21 |
| Resolution & Speed | High quality model (6 pass): 1800 x 720dpi, 30m²/h |
| Production model (4 pass): 1200 x 720dpi, 45m²/h |
| High speed model (2 pass): 600x 720dpi, 95m²/h |
| Media Transfer | Auto Taking-Up Media Device |
| Inks | Double four color (CMYK), apply for water-base and dye sublimation
ink |
| Rip | Maintop5.3/Photoprint10.5/Onyx |
| Print head | Dual EPSON I3200-A1 print heads (Nozzle Quantity 3200), Auto suck
ink, ink suck protect system |
| Format Dimension | 2895L x 840W x 1490H (mm) |
| Head Moisture Method | Auto Head Cleaning and Moisturize |
| Media | Modalities: Roll to roll media |
| Specifications: Max width 1.9 meters, unlimited length |
| Classification: Banner, sublimation paper, PE, PP, ABS, PU, Vinyl |
| Print format | PDF, PS, EPS, TIFF, AL etc. (RGB/CMYK) |
| Power Supply | 210-230V, 50/60HZ, 16A, Print Power: 1000W |
| Dryer Power: Max.3500W Temperature: 18-30ºC |
| Environment power | Temperature:18-30ºC |
| Humidity: 35-70%RH |
| Gross power: | 3.6KW |
| Weight: | 289KG |
Carriage:
The height of double printheads can be arbitrarily adjusted.
Anti-scratch function on both sides of the car reduces the
printhead damage caused by paper warping.
Printhead:
Adopt Epson I3200-A1 printhead with 3200 nozzles, which can improve
the speed of printing greatly. Variable dot technology, 3 sizes of
dots can be generated for smoother gradation vivid colors and sharp
images.

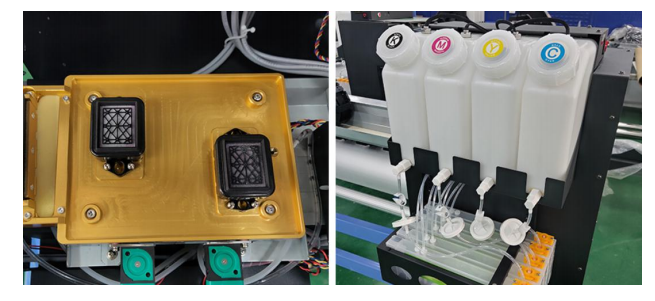

Capping Station:
Equipped with advanced intelligent auto printhead cleaning and
moisturizing device, which can pump ink well and keep the ink flow
fluently.Disc Ink Filter: Bulk tanks with 3L capacity make sure the
continuous ink supply. Sub-tank is to keep all colors ink always at
the same level.
FAQ
1. Production Lead Time: about 30days after received the deposit
2. Payment Term: 30% deposit, 70% before shipping
3. Warranty: One year warranty (For machine parts, we have one year
guarantee. For motor, three months guarantee. For spare parts
touching with ink, such as ink sat, ink pump, printhead, we have no
guarantee. It's all the same in the market.)
4. Installation and Training: We help the installation through
online Video , if you have problem when you use the machine, we
will train you online. These are all for free. If needed, we can
also send engineers to your place, but you need to pay their travel
expense.
