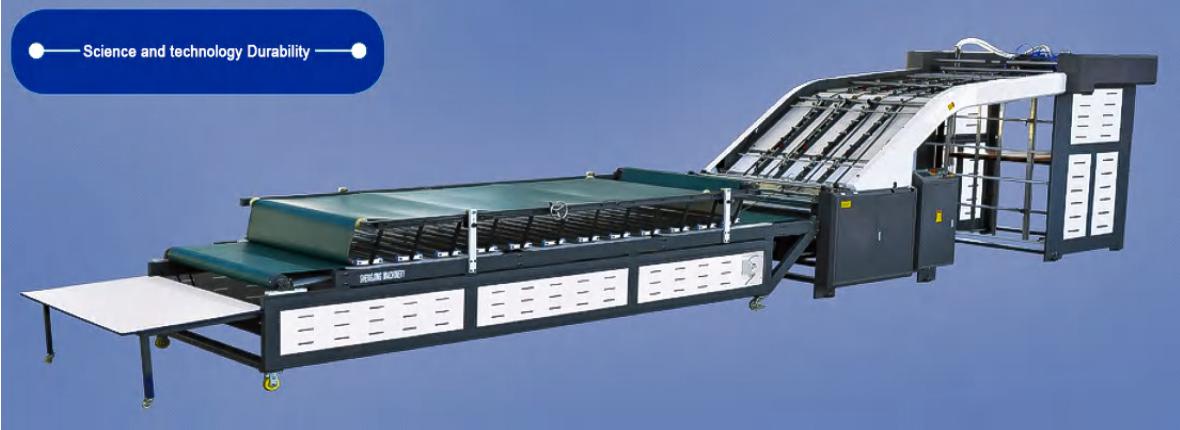

1.5mm Precision Automatic Flute Laminator Machine
▣ Major Components
ECOO 1450 automatic flute laminator mainly consists of six parts:
1) Automatic face paper feeding section;
2) Face paper conveying section;
3) Automatic bottom paper conveying section;
4) Cyclic gluing section;
5) Positioning section;
6) Pre-pressing section and pressing section.
It suits to laminate the printed paper to the corrugated
board(3ply), with features of high precision and high speed. It is
the ideal laminating machine for all kinds of packaging company.
▣▣ Specifications
Model
ECOO 1450
Max. Paper Size(mm)
1450×1300
Min. Paper Size(mm)
400×400
Thickness Of Face Paper(g/m2)
150-500 Bottom paper A.B.C.D.E flute
Front Lay Laminating Precision(mm)
± 1.5
Mechanical Speed(m/min)
110
Laminating Efficiency(sheets/h)
0-6000
Power Supply
380V 3P 5W 50Hz
Dimension(L*W*H mm)
12000×2300×2950
Weight(kg)
5500
| Model | ECOO 1450 |
| Max. Paper Size(mm) | 1450*1300 |
| Min. Paper Size(mm) | 400*400 |
| Thickness Of Face Paper(g/m2) | 150-500 |
| Bottom Paper | A.B.C.D.E flute |
| Front Lay Laminating Precision(mm) | ± 1.5 |
| Mechanical Speed(m/min) | 110 |
| Laminating Efficiency(sheets/h) | 0-6000 |
| Power Supply | 380V 3P 5W 50Hz |
| Dimension(L*W*H mm) | 12000*2300*2950 |
| Weight(kg) | 5500 |
▣▣▣ Details
♥ Automatic feeder feeding is equipped with pre-loading
device(optional) to reduce downtime and improve work efficiency.
♠ The conveying of the face paper unit adopts scale feeding method.
Both thick and thin paper can be conveyed efficiently and quickly
with smooth feeding.
♦ The unique design of the tension spring front lay effectively
reduces the failure rate of the machine, and combined with
intelligent control systems to ensure the positioning and
lamination precision(machine precision ±1.5mm). It is more
convenient to adjust the front lay.
♣ The gluing roller wheel group adopts medium height and anilox
design to ensure the coating is more uniform which makes the
lamination more strong, the production cost lower. At the same
time, the glue supply system adopts automatic cyclic glue, which
greatly reduces the labor intensity.
♥ It adopts frequency speed regulation, PLC centralized control which
enables accurate operation.
♠ With the unique drive design, the machine doesn't need to add any
parts when the order is changed.
▣▣▣▣ Producing And Packaging
From producing to delivery, we make every details very carefully to
guarantee the good product quality and service to customers.
▣▣▣▣▣ Certificates
▣▣▣▣▣▣ FAQ
Q1: What are your main products ?
A: Our main products are the Prepress 4up and 8up Online/Offline
Thermal CTP, CTCP, VLF CTP, Flexo CTP, Processor, Offset Plates,
Offset Inks, Offset Printing Blankets, Postpress Packing Equipment
and so on.
You can get the equipment and consumables all in one and no worry
about the after-sales service from our company.
|
| |
Q2: Where is your factory ?
A: Our CTP Processor machine factory is in Shanghai, you are warmly
welcome to visit our factory!
|
| |
Q3: How long is the lead time ?
A: The lead time is normally 30 days. We can accelerate for emergency
cases.
|
| |
Q4: Is there any certification for your machine ?
A: Yes, all our machines have been certified by SGS and CE.
|
| |
Q5: How long is the warranty period ?
A: EcooGraphix guarantees 1 year of warranty for laser head and spare
parts.
|
| |
Q6: What is your normal payment term ?
A: Normally, 30% TT deposit, 70% before shipping, or LC at sight.
|
| |
Q7: What about the installation and after-sales technician support
?
A: Our engineer can go to help the installation and provide the
necessary training. The buyer should take the round air plane
tickets, service charge and the local accommodation cost. Any
problems or questions, we will be at your disposal 7x24 hours.
Among our large amount of CTP installations worldwide, there are
also many end users(printers) who have purchased the CTP products
from EcooGraphix China directly and EcooGraphix technical service
team support these installations remotely with regular onsite
visits.
These end users printers all run the CTP systems with full
satisfaction due to our robust quality, seamless remote service,
thorough training and maintanence. If you are a printer who is
considering purchasing directly from EcooGraphix China, there is no
hassle on installations, training and after sales service. We
guarantee your satisfaction. |
